WestHunter Optics TD 5-30x56 SFIR FFP Precision 1/10 MIL Riflescope for Competition Shooting, Zero Stop Turret Red Illuminated First Focal Plane, 34mm Tube Tactical Rifle Scope for Long Range Hunting
Product details
| Management number | 216603284 | Release Date | 2026/04/19 | List Price | $113.06 | Model Number | 216603284 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

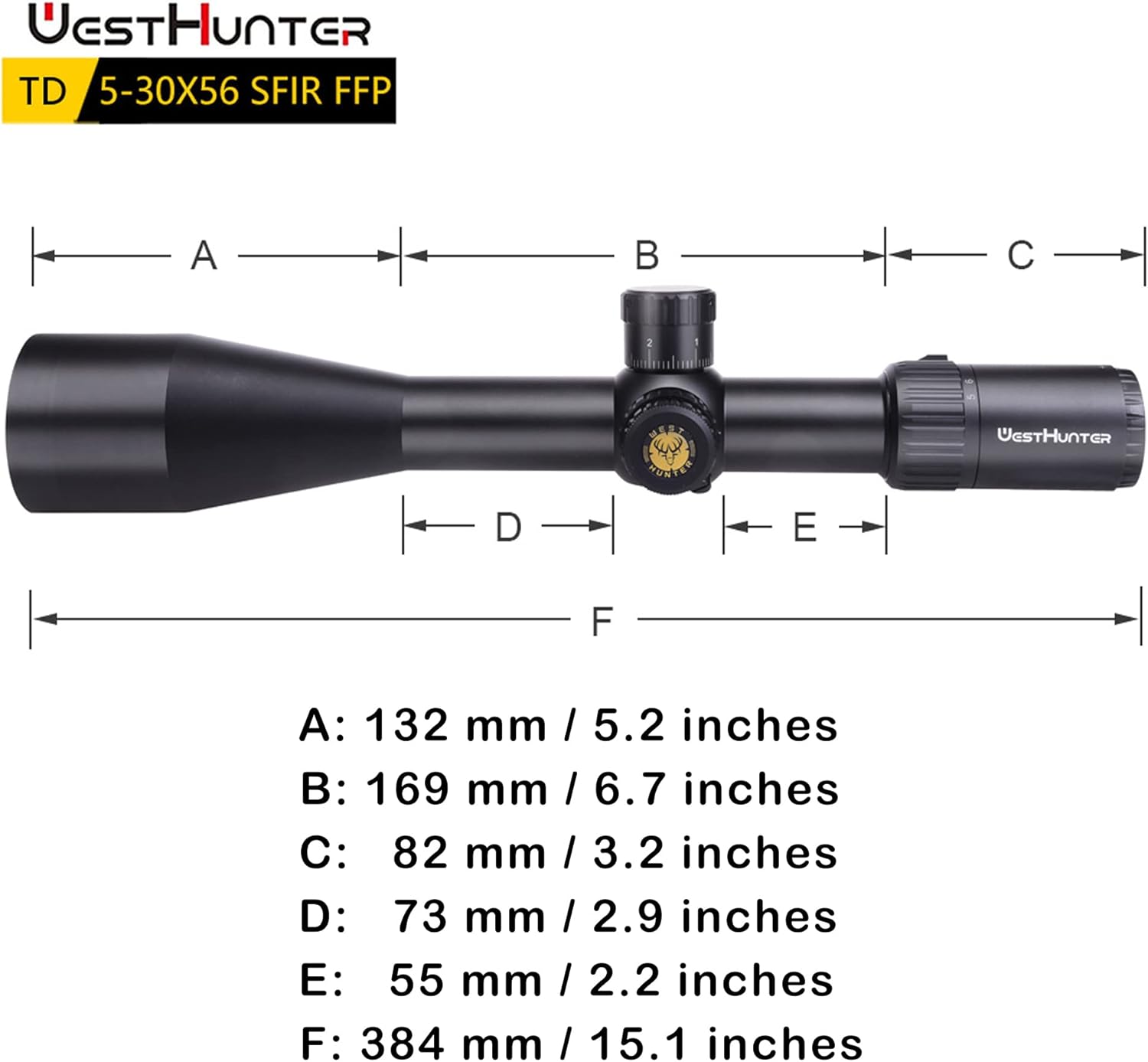

The TD series Riflescope is the latest high-end product launched by Westhunter in 2022. It is a high-performance optics, suitable for large caliber(.308 to .50), used for long-range precision shooting, hunting and competition(TD 5-30x56 SFIR FFP has the function of "Zero Stop") Specifications: Brand: WestHunter Model: TD 5-30x56 SFIR FFP Zero Stop: Yes Magnification: 5x-30x Objective Lens Diameter: 56 mm / 2.2 in Objective Diameter: 64 mm / 2.5 in Eyepiece Lens Diameter: 35 mm / 1.38 in Eyepiece Diameter: 44 mm / 1.73 in Illumination: Red(CR2032 battery is not included in the package) Tube Diameter: 34 mm / 1.34 in Diopter Adjustment: - 2.0 / + 2.0 Exit Pupil: 6-1.6 mm Standard Click Value for E/W: 1/10 MIL Total Travel Elevation (@ 100 yds): 60 MOA Total Travel Windage (@ 100 yds): 60 MOA Parallax Adjustment: 10yds to Infinity Eye Relief: 96-95 mm (3.78- 3.74 in) Field of View: 23.1-3.5@100yds(ft) Length: 384 mm / 15.12 in Net Weight of Optics: 913 g / 32.21 oz Surface Treatment: Anodizing Fast Focus Eyepiece: Yes Sealing Gas Used: Nitrogen Range of Function temperature (Unit can still be operated): -25°C/+55°C Storage temperature: -40°C to +85°C Range of Dioptric compensation +/- dpt: 2 Permissible backlash Dioptric Compensation: <0.25dpt Straightening of the Reticle: ±2° Coating: Fully Multi-Coated(FMC)
- Zero Stop Turret - Zero Stop adjustment turret allows quick and easy yardage setting without counting clicks, precision windage and elevation turret feature crisp audible clicks(Special note: If the elevation turret is loose, consider that the screw on the turret is not tightened after adjusting the turret)
- Glass & Coatings - The lens was made with Optical Quartz(Optical Silica), ion-assisted fully multi-coatings, and up to 92% light transmission, provides excellent color fidelity, brightness, clarity, and detail resolution in most environments
- Main Parameters - Offers parallax adjustment down to 10 yards, 60 MOA of elevation/windage travel, 34 mm Tube and red illuminated etched glass FFP reticle, 96 mm long eye relief, wide field of view 23.1-3.5 feet (@100yds), and 1/10 MIL precision turret adjustment
- Construction & Technology - Constructed with 6061 T6 aircraft-grade aluminum alloy for a stable, durable, and lightweight structure. Matte black anodized finish enhances appearance and wear resistance, nitrogen filling prevents fogging, the mature design and assembly processes ensure excellent shock resistance and waterproof performance
- Our TD series offers exceptional value. Whether you need a reliable shooting partner or want to upgrade your optics, it will be an excellent choice
| UPC | 784300740858 |
|---|---|
| Color | Black |
| Brand Name | WestHunter |
| Eye Relief | 95.5 Millimeters |
| Sport Type | Hunting & Shooting |
| Item Weight | 0.92 Kilograms |
| Manufacturer | WestHunter |
| Night vision | No |
| Reticle Type | Mil Dot |
| Field Of View | 23.1 Feet |
| Material Type | Aluminum |
| Mounting Type | Picatinny Mount or Weaver Mount |
| Product Style | Option 1- Fully Equipped (Excluding Scope Mount) |
| Item Type Name | Riflescope |
| Compatible Devices | Rifle |

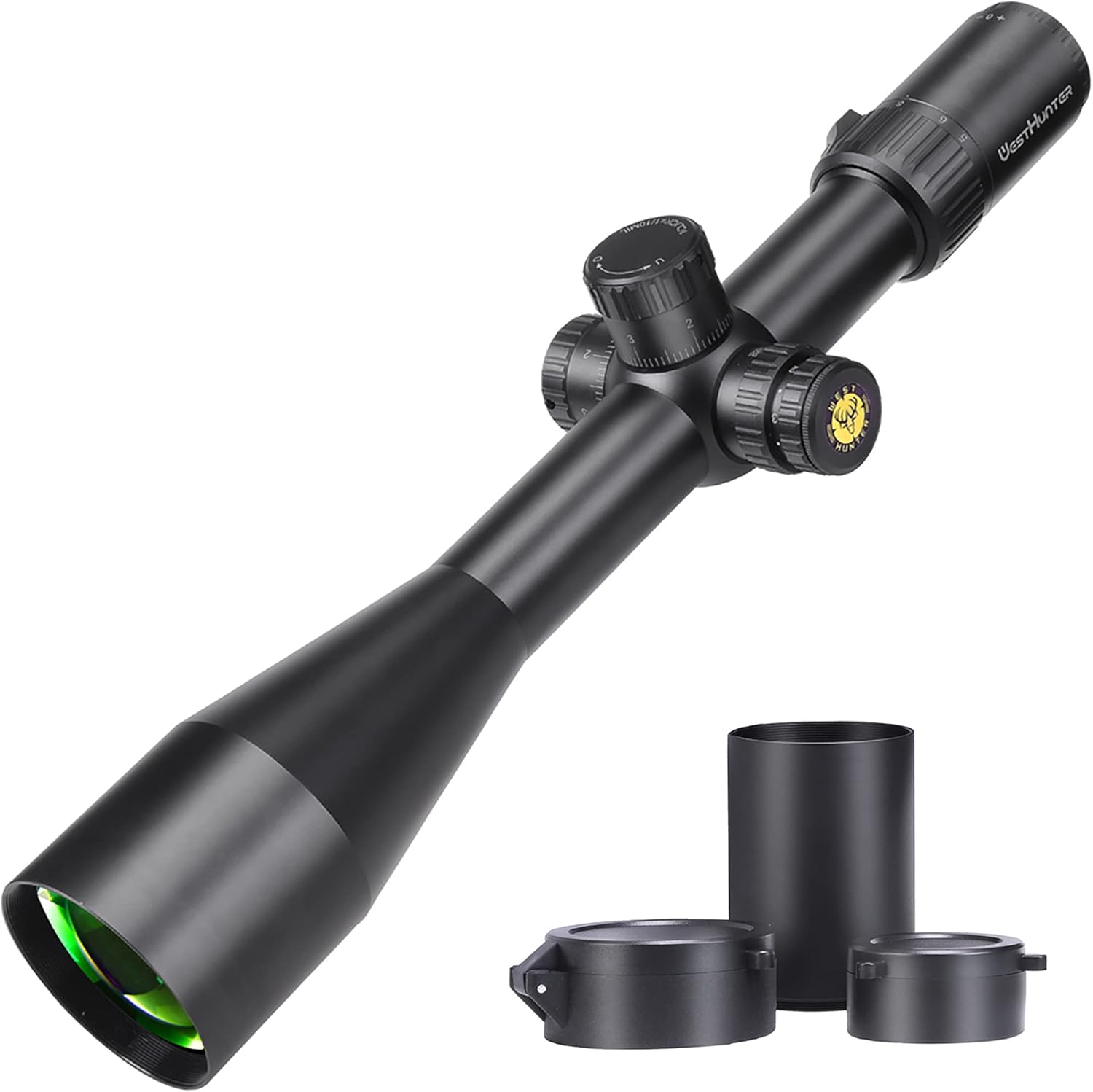

| Included Components | "Bubble Level" x 1, "Lens Cover" x 2 & "Sunshade" x 1, "Parallax Wheel" x 1 & "Throw Lever" x 1, "TD 5-30x56 SFIR FFP" x 1 |
| Warranty Description | Every customer purchasing the TD scope on Amazon is entitled to activate the "Lifetime Warranty" service (Amazon Exclusive) offered by WestHunter. The warranty covers any scope failures that occur during regular use, excluding loss, theft, intentional or accidental damage caused by misuse, and cosmetic damage that does not affect the product's performance.(Used products are not covered by the warranty) |
| Magnification Maximum | 30 x |
| Magnification Minimum | 5 x |
| Objective Lens Diameter | 56 Millimeters |
