WayPonDEV Link Pi ENC5-V2 5 Port NDI HDMI Encoder, 4K 1080P Video Decoder, Support NDI/SRT/HX/RTMP/RTSP/ONVIF for YouTube Facebook Live Broadcast and Cameras, with 4GB DRR4 RAM
Product details
| Management number | 215133744 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215133744 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

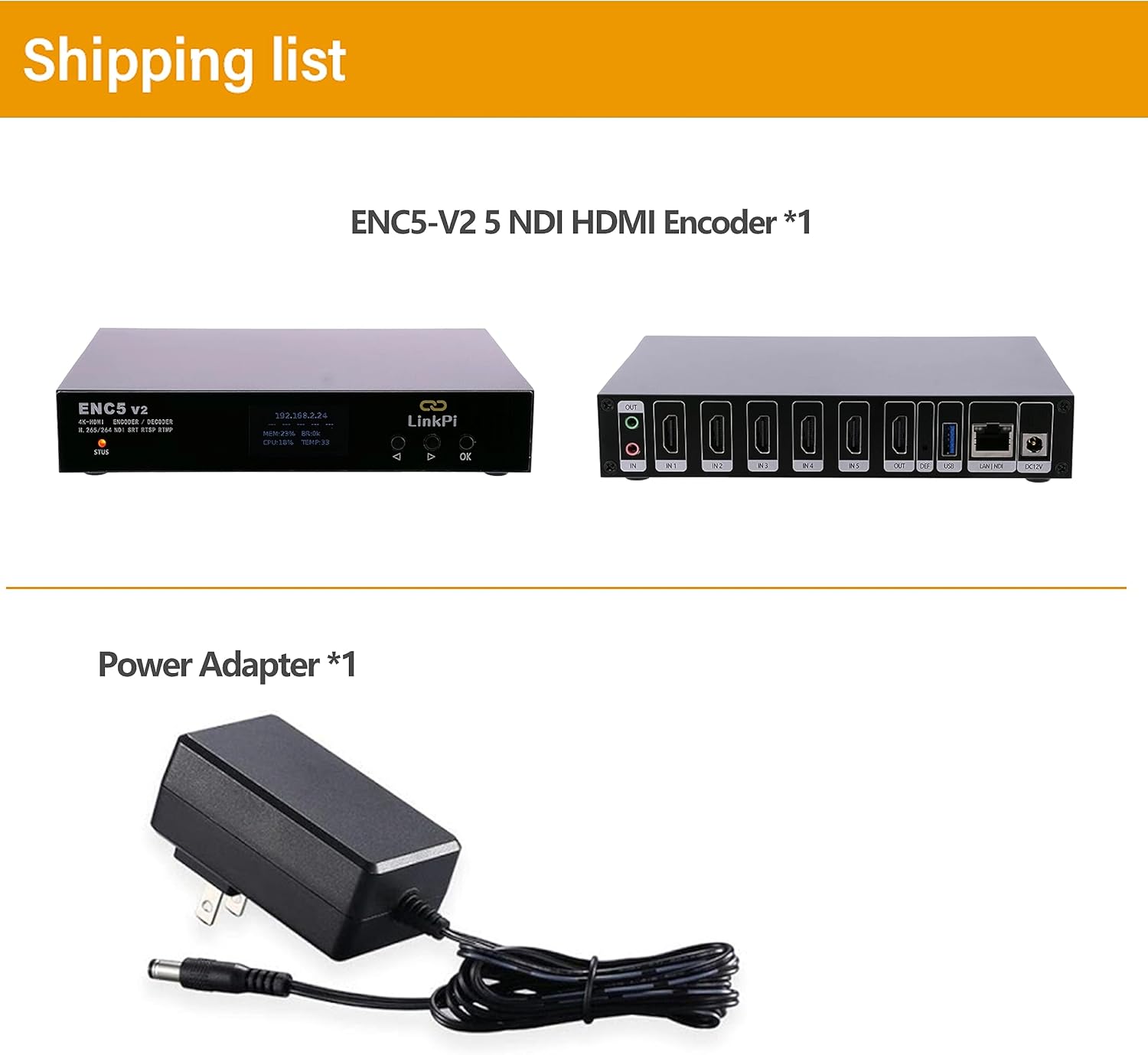

-Specification-CPU：ARM Cortex-A53@1.2GHz ×4RAM：4GB DDR4，FLASH：8GB eMMC-Video Parameters-HDMI IN：5-channel HDMI 1.4 up to 4K@30fpsHDMI OUT：Up to 4K60lnput：4K30,1080P,720P,1080i,720i,1600×1200Resolution：1440×900,1366×768,1280×1024,1024×768,800×600,640x480Encode：H.264 Baseline profile，H.264 Main profileH.264 High profile，H.265 Main profileMJPEG/JPEG BaselineDecode：H264,H264,MJPEGEncode Main：1080P,720P,360P, customizeResolution：Sub: 720P,360P, customizeFramerate：1~60 FPSOther：Support SmartP, DualPMax Bitrate：20MbpsRate control：CBR/VBR/AVBR/FIXQP/QPMAP-Network parameters-LAN: 10/100/1000M RJ45WIFI: Optional4G: OptionalProtocols：RTSP，RTMP,HTTP, HLS, UDP, unicast, multicastSupport: ONVIF、SRT、NDIFile record: Storage: USB DiskRecord format: MP4,TS,FLV,MOV,MKV,AVI-Package Content-ENC5-V2 HDMI Encoder x112V 2A Power Supply x1-Technical Support-Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)" or skype: monica_9122.Please leave the message in our forum by "forum.youyeetoo.com/".
- [5-Channel HDMI1.4 Encoder ] ENC5-V2 HD Encoder with 5 channels HDMI 1.4 port, support up to 4K@30fps input and 4K60P HDMI output multi protocol live broadcasting, including RTSP/RTMP/HTTP/HLS/UDP/ONVIF/Unitcast/Multicasting.

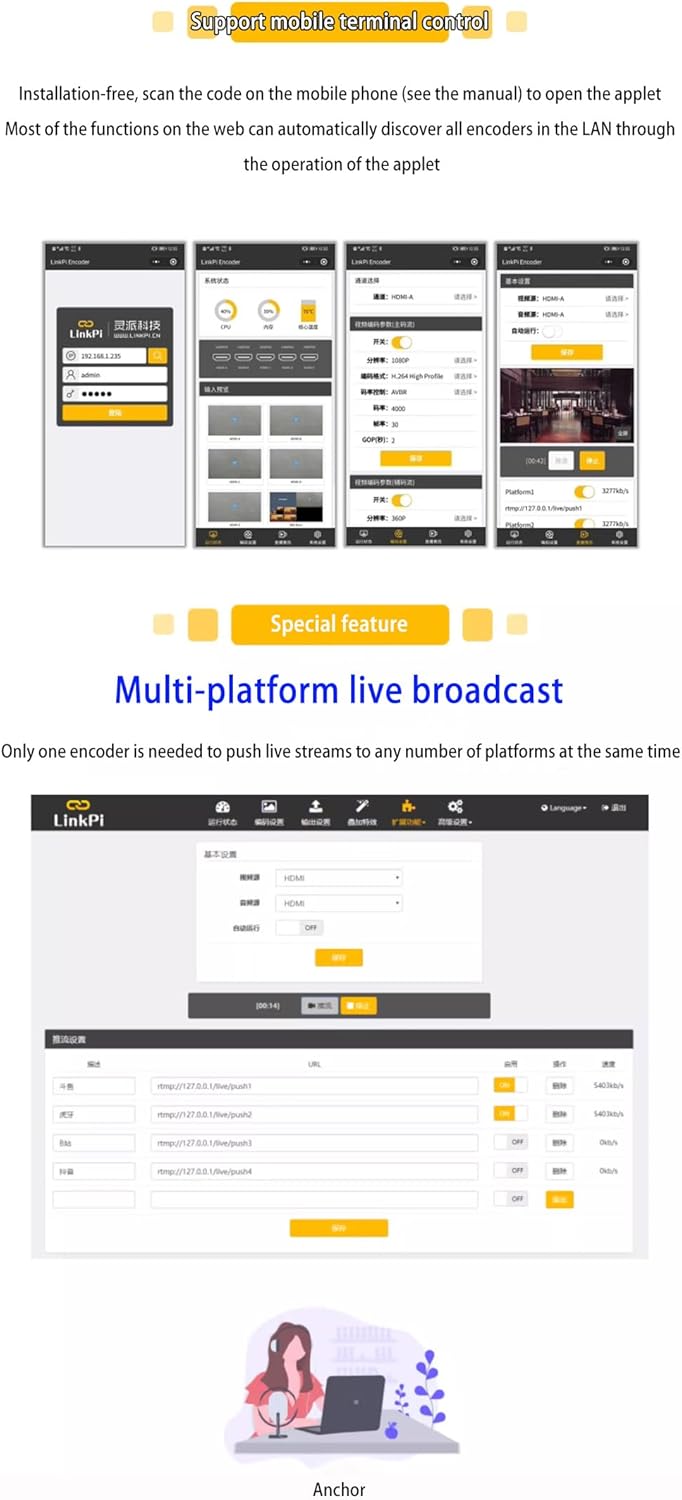

- [Support Mainstream Video Platforms] ENC5-V2 4K HD encoder compatible with most Internet video platforms and streaming sites such as YouTube Live, Facebook Live, Twitch and Twitter online Live Broadcast.
- [Full HD Resolution] ENC5-V2 HD encoder supported resolutions including 4K30, 1080P, 720P, 1600×1200, 1440×900, 1366×768, 1280×1024, 1024×768, 800×600, 640×480. ENC5-V2 4K is not just a encoder, it support decoding, director, mixing and other functions at the same time. It can also achieve one-click remote assistance, live game, online class teaching.
- [Support WiFi/4G Module] ENC4S HDMI Encoder can achieve wireless transmission, mobile live and other programmes, while supporting multi-platform live, multi-picture guide switching. ENC5-V2 encoder also support LAN, public network call and Tally light control. It can auto-linking with vMix and other playback software
- [Various Peripheral Devices] ENC5-V2 hdmi encoder support a variety of peripheral devices, including: TV set-top boxes, laptops, cameras, network monitoring, USB cameras, mobile phones, game consoles, etc. ENC5-V2 encoder with wide range of application scenarios.
- [SDK Document] ENC5-V2 4K HD encoder support LinkSDK. SDK download: "wiki.youyeetoo.com/en/LinkPi". All technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)" or please click "WayPonDEV" store and ask the question.
| Brand | WayPonDEV |
|---|---|
| Color | 4GB DDR4 RAM 8GB eMMC |
| Finish | Hdmi |
| Unit Count | 1.0 Count |
| Item Weight | 350 Grams |
| Manufacturer | youyeetoo |
| Model Number | ENC5-V2 |
| BuiltIn Media | DC Power Supply |
| Input Voltage | 12 Volts |
| Nominal Power | 24 Watts |
| Connector Type | AV, Ethernet, HDMI, USB |
| Current Rating | 20 Amps |
| Item Dimensions | 9.84 x 5.12 x 1.18 inches |
| Number of Items | 2 |
| Number of Ports | 5 |
| Power Plug Type | Type A - 2 pin (North American) |
| Package Quantity | 1 |
| Compatible Devices | Laptops, Cameras, Network Monitoring, USB Cameras, Mobile Phones, Game Consoles |
| Warranty Description | WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is "dead on arrival", arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy. |
| Specific Uses For Product | TV/Cameras, Telephone/Laptops, Video Game Console |
