This Accessory is Suitable for Englander Auger Motor Kit W/Bearing & Gasket, PU-047040, PU-UCF204-12, PU-ABG

This accessory is suitable for Englander Auger Motor Kit W/Bearing & Gasket, PU-047040, PU-UCF204-12, PU-ABG 1，Part number: PU-047040 / PU-UCF204-12 2，Auger Feed Motor, 1 RPM Counter Clockwise (When Facing Shaft) 3，Electrical: 120V, 60 HZ, 1.03 Amps, Continuous Duty. 4，MOTOR Size: 3/8” Diameter x 1” Length Shaft – Flat Edge of Shaft for Securing with Set Collar, Hole in Shaft for Set/Cotter Pin Installations. Wire leads measure 20” in length. We include both male and female spade connectors depending on your stoves configuration. Gearbox Measures 2-¾” Wide x 4-5/8” High x 1” Width (Width to screw mount hole 1-5/16”) Total width including magnet, armature and gearbox measures 2-1/8”.BEARING Size:Auger Bearing Block, Block Bearing, 3/4″ Bore 5，Product Note: This motor operates at a lower temperature and requires no or minimal post-positioned plastic cooling fan. This motor has wire leads for electrical connection instead of leads directly on the motor. Connection wires will plug in directly into wire leads; doesn’t matter which wire connects to which lead. 6，Model Note：Used as the auger motor in stoves that have PDV, PDVC, 10, or 22 in the model number.Used as the stirrer motor in multi-fuel units that have 10-CPM, 49-SHCPM, 49-SHCPML or 49-TRCPM in model number.

• Part number: PU-047040 / PU-UCF204-12

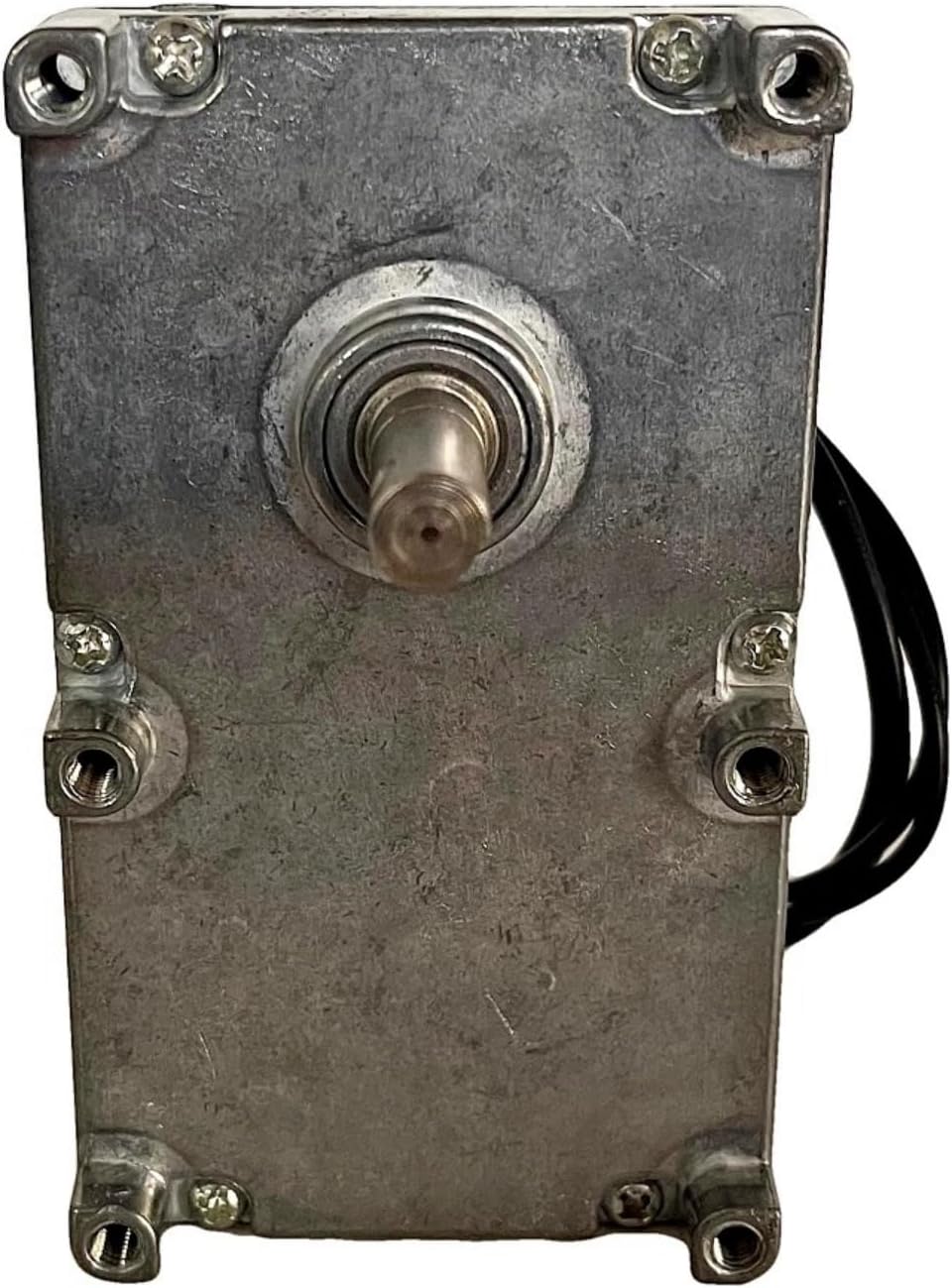

• Auger Feed Motor, 1 RPM Counter Clockwise (When Facing Shaft)
• Electrical: 120V, 60 HZ, 1.03 Amps, Continuous Duty.
• MOTOR Size: 3/8” Diameter x 1” Length Shaft – Flat Edge of Shaft for Securing with Set Collar, Hole in Shaft for Set/Cotter Pin Installations. Wire leads measure 20” in length. We include both male and female spade connectors depending on your stoves configuration. Gearbox Measures 2-¾” Wide x 4-5/8” High x 1” Width (Width to screw mount hole 1-5/16”) Total width including magnet, armature and gearbox measures 2-1/8”.BEARING Size:Auger Bearing Block, Block Bearing, 3/4″ Bore
• Product Note: This motor operates at a lower temperature and requires no or minimal post-positioned plastic cooling fan. This motor has wire leads for electrical connection instead of leads directly on the motor. Connection wires will plug in directly into wire leads; doesn’t matter which wire connects to which lead.
• Model Note：Used as the auger motor in stoves that have PDV, PDVC, 10, or 22 in the model number.Used as the stirrer motor in multi-fuel units that have 10-CPM, 49-SHCPM, 49-SHCPML or 49-TRCPM in model number.
