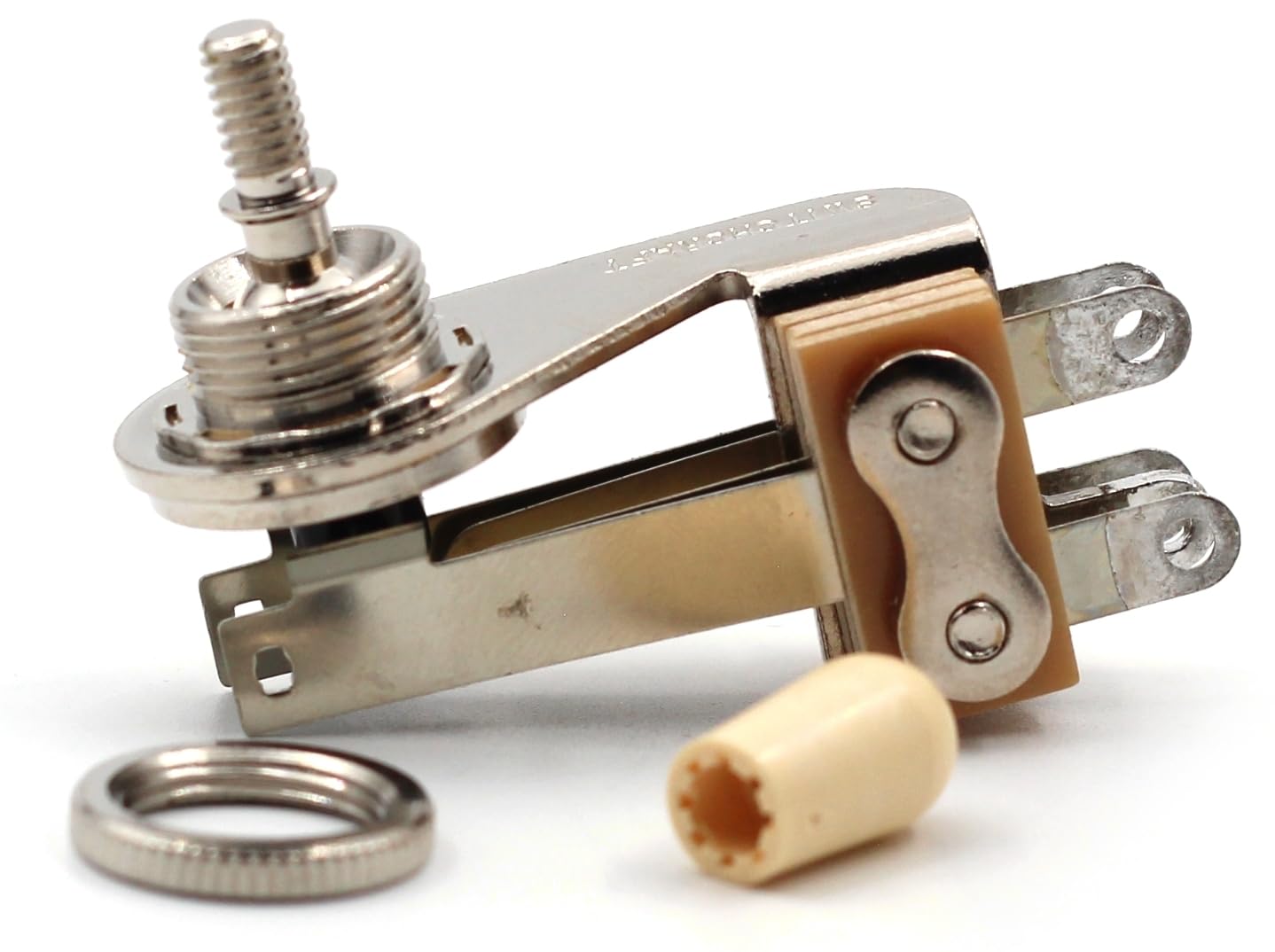

Switchcraft 3-Way Toggle Switch - Right Angle L-Type w/Genuine Cream Switchcraft Tip for Electric Guitar
Product details
| Management number | 218040926 | Release Date | 2026/05/03 | List Price | $11.20 | Model Number | 218040926 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Reliable and heavy-duty for SG and thin 2-pickup guitars. Switchcraft has been the standard in Gibsons and other great American guitars for decades. Genuine Switchcraft tip in desired color is included. Pre-tinned lugs for easy soldering. Comes with one flat knurled nut. Switch length: 2"(50.80mm) Thread height: 3/16"(4.76mm) Requires 1/2"(12.70mm) mounting hole diameter Required body cavity depth 1-1/2"(38.10mm) and 13/16"(20.64mm) body cavity depth Note: Due to the thickness of carved top guitars, a deep nut may be required to thread the switch through the body of the guitar. The deep nut is NOT included with this switch but may be purchased separately.
- Right-angle toggle switch for SG and thin 2-pickup guitars
- Made by Switchcraft in USA
- Pre-tinned lugs for easy soldering
- Genuine Switchcraft colored switch tip included
- PLEASE NOTE! When using with a thick body or carved top you MAY need a deep nut to to thread the toggle through the body.. A deep nut needs to be purchased separately
| UPC | 733569804375 |
|---|---|
| Color | Cream |
| Model | 12010X |
| Wattage | 300 watts |
| Terminal | Solder |
| Brand Name | The Art Of Tone |
| Unit Count | 1.0 Count |
| Part Number | 12013X |
| Switch Type | Toggle |
| Circuit Type | 3-way |
| Contact Type | Spst (Break) X2 |
| Manufacturer | Switchcraft |
| Actuator Type | Toggle |
| Material Type | Nickel Plated Steel |
| Mounting Type | Panel Mount |
| Connector Type | Quick Connect |
| Current Rating | 3 Amps |
| Operation Mode | ON-ON-ON |
| Maximum Current | 3 Amps |
| Contact Material | Silver |
| Operating Voltage | 100 Volts (AC) |
| Specification Met | REACH, RoHS |
| Contact Resistance | 20.0 |
| Dielectric Strength | 250 |
| Included Components | 1x Right Angle Frame Switchcraft Toggle |
| Number of Positions | 3 |
| Warranty Description | 30-Day Seller |
| Insulation Resistance | 1000 Megaohms |
| Mounting Hole Diameter | 0.5 Inches |
| International Protection Rating | IP00 |
