Red Line Laser Module 635nm Class 1, 3~6VDC, 60° Fan Angle, 1~20 meters working distance, VLM-635-55 LPT, APC Control – Industrial Alignment for Wood, Metal, Machine Vision

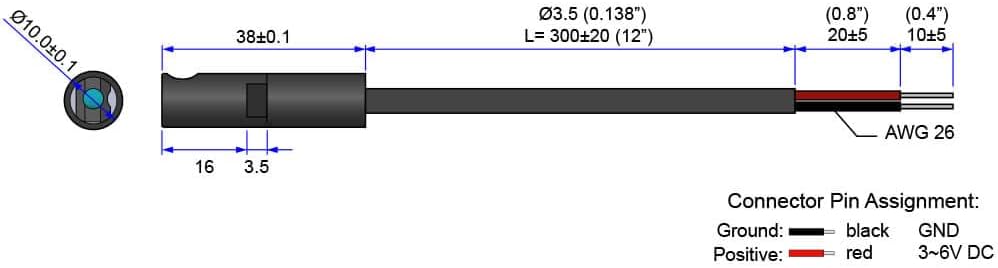

The Quarton VLM-635-55 LPT is a direct red line laser module engineered for high-precision industrial alignment and automation especially for low-light environment. The laser beam is focused at 10 meters, producing a fine, even green line ideal for woodworking, stone cutting, metal alignment, and machine vision applications. Equipped with a quartz cylindrical lens and APC driver circuit, it ensures a steady, eye-safe Class I output under 3–6VDC operation. Built in a compact, durable aluminum housing, this laser module is designed for long-term reliability with a10,000-hour lifespan (MTTF @25°C). Made in Taiwan, Quarton delivers optical precision for industrial and OEM integration worldwide. FEATURES: 1. Red Laser Diode for large temperature operation range. 2. High quality straight red line laser, ideal for industrial application. 3. Laser beam is focused at 10 meters to generate best thin laser line from 3 meters to 20 meters. 4. Industrial use laser modules have 10,000 hours working life. 5. This module has integrated optic, red laser diode, and APC driver circuit. 6. APC driver circuit enables the Laser power output safe and constant. 7. Dimensions : Ø10 x 38 mm (Ø0.393" x 1.496") 8. Wavelength : 630~645 nm 9. Laser power output : Class 1 Laser product. 10.Fan Angle : 60° 11. 3~6 VDC operation. 12. Connection type : Lead wire APPLICATIONS: 1. Straight Red Line from Red Laser Diode. 2. Wood processing. 3. Metal processing. 4. Stone processing. 5. Textile industry. 6. Food industry. 7. Automotive industry. 8. Medical science.

• Direct Red Line Laser - Industrial-Grade Accuracy: This 635nm red diode laser module provides stable, bright, and highly accurate line projection for professional alignment and measurement. Designed for industrial use, specially in low-light environment, it delivers consistent results in demanding production and calibration environments.
• Stable Performance Across Environments - Fast, Reliable, Precise: Operates reliably from –4°F to 140°F (–20°C to +60°C) with quick startup, low power loss, and consistent output. Suitable for continuous use in various industrial conditions such as woodworking, metal fabrication, textile production, food processing, and automation systems - ensuring precise and stable laser guidance over long working hours.
• Optical Precision with Glass Lens - Clear and Uniform Line: Equipped with a high-quality glass optical lens for enhanced clarity and long-term stability. Laser output is Class 1 (eye-safe) and focused at 10m for sharp lines between 3~20m. Line width: 3±0.5mm @5m, 6±0.5mm @10m. Fan angle 60° ensures wide coverage and uniform brightness. Optical power output: 9~10 mW.
• Durable Aluminum Alloy Housing - Anti-Wear & Heat-Resistant: Built with a hard anodized aluminum alloy shell (antize finish) that offers abrasion resistance, heat resistance, and effective heat dissipation. Compact body (Ø10×38mm) operates on 3~6VDC with a built-in APC driver circuit for constant output power and safe, stable performance.
• Long Lifespan & Made in Taiwan - Reliable Quality Assurance: Designed and manufactured in Taiwan with strict industrial standards. Features a Mean Time To Failure (MTTF) of 10,000 hours at 25°C, ensuring long-lasting precision, reliability, and performance for professional alignment applications. Power source, power supply, base, or wiring terminals are not included.
• Wide Industrial Applications, General-purpose, Industrial-grade red line laser module: Ideal for alignment and positioning in industrial environments, including wood processing, metal fabrication, textile production, food industry, stone cutting, automation systems, and medical or optical equipment calibration. Provides precise, reliable laser guidance from 1~20 m working distance.
• Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
