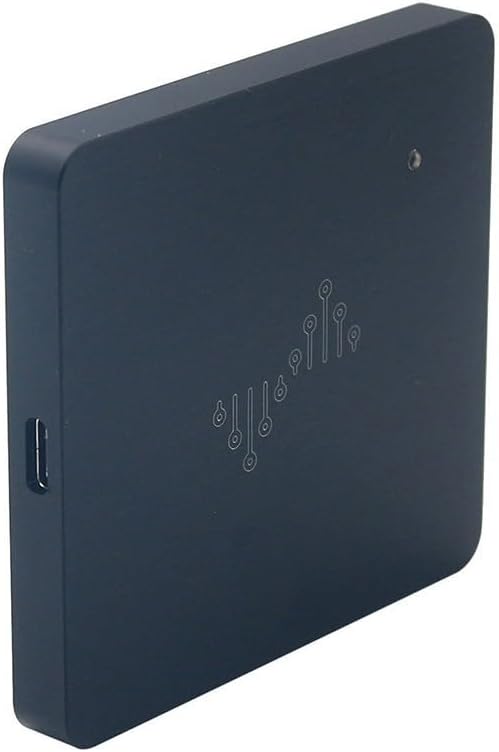

Portable DSLogic Logic Analyzer 100MHz Sampling Rate 16-Channel 16GB Depth USB Interface Compatible With For Windows

Features:* Impedance matching reduces high-frequency reflections and avoids false sampling.* Capable of acquiring and observing digital signals up to 100MHz.* Overvoltage and electrostatic discharge protection extends lifespan.* Dual-mode support: Streaming mode supports real-time USB transfer to PC with ultra-large sampling depth; buffered mode provides large-bandwidth hardware memory, supporting ultra-high sampling rates.* Adjustable threshold: Compatible with multiple voltage standards including 1.2V, 1.8V, 2.5V, 3.3V, and 5.0V, adjustable to avoid interference areas.* All-metal casing: 360° noise shielding and heat dissipation design stable circuit operation.* Type-C USB interface: Removable and pluggable, extending lifespan. Overvoltage, overcurrent, and electrostatic discharge protection help prevent damage.Specifications:Part Name: Logic AnalyzerMaterial: MetalColor: As shown in the pictureSize: StandardSupports a maximum memory depth of 16GB;Captures 160-second waveforms (100MHz sampling rate);Captures 13-minute waveforms (20MHz sampling rate);Captures 4-hour waveforms (1MHz sampling rate).Compatible with for Windows systems: Compatible with XP/Vista/Win7/Win8/Win10. Supports original for Microsoft software drivers. Supports digital signatures. Enables stable and reliable data transmission.Multi-layer protocol analysis makes data more intuitive and easier to view.Open source protocols: Supports 64 protocols, including I2C, UART, for SPI, CAN, for PWM, 1-WIRE, I2S, JTAG, for SWD, IR_NEC, MDIO, for SD_CARD (for SD mode), USB signals, for EEPROM, for SPI_FLASH, JTAG_STM32, ARV_ISP, for nRF24L01, RGB_LED, for SD_CARD (for SPI mode), for MODBUS, and USB PACKET.Supports configuration and data saving, and can load from files.Supports exporting data to CSV, VCD, Gnuplot, and other formats.Supports protocol parsing and exporting to text files.Supports protocol content searching.Cursor snaps automatically when inserted into an edge.Mouse measurement: Width, period, frequency, duty cycle.Interval measurement: Up to 16 groups can be added.Edge statistics: Up to 16 groups can be added. DSLogic 100M Basic Specifications: (as follows)Mode: Streaming + Buffered (Buffered Mode: 100M@16 channels)Maximum Sampling Rate: Streaming: 100M@3 channels; 50M@6 channels; 25M@12 channels; 20M@16 channelsMaximum Depth: 16G@Streaming; 64M@BufferedHardware Memory: 65MbitsTrigger : Simple Hardware TriggerThreshold: 0-5V AdjustableVoltage Range: ±30VInput Impedance: 250KΩ·7pFPosition Sampling: Maximum 30MExternal Interface: Standard wires; 4 grounding connectionsPackage Contents:1 x DSLogic Logic Analyzer1 x Type-C Data Cable1 x 4+1 Sets of Flexible Flat Cable16 x Signal Clips (Random Color)

• High-Speed Signal Capture: Handle complex debugging with the DSLogic logic analyzer capable of acquiring and displaying digital signals up to a 100MHz sampling rate, making detailed waveforms clear for precise fault tracking in electronics development.
• Versatile Voltage Compatibility: Adjustable threshold supports multiple voltage standards including 1.2V, 1.8V, 2.5V, 3.3V, and 5.0V, helping forestall‌ interference across diverse devices while maintaining stable signal acquisition under varied environments.
• Dual-Mode Operation: Switch seamlessly between streaming mode for real-time USB transfer to PC with 16G depth, and buffered mode for large-bandwidth hardware memory, Logic analyzer for capturing extended sequences without data loss.
• Robust Metal Construction: All-metal casing offers 360° noise shielding and heat dissipation, combined with overvoltage, overcurrent, and electrostatic discharge protection to extend lifespan and reduce risks during intensive debugging.
• Broad Protocol Support: Decode 64 open-source protocols including I2C, UART, for SPI, CAN, for PWM, JTAG, and USB packet analysis, export results to CSV, VCD, or Gnuplot formats, and simplify complex data with intuitive multi-layer protocol analysis tools.
