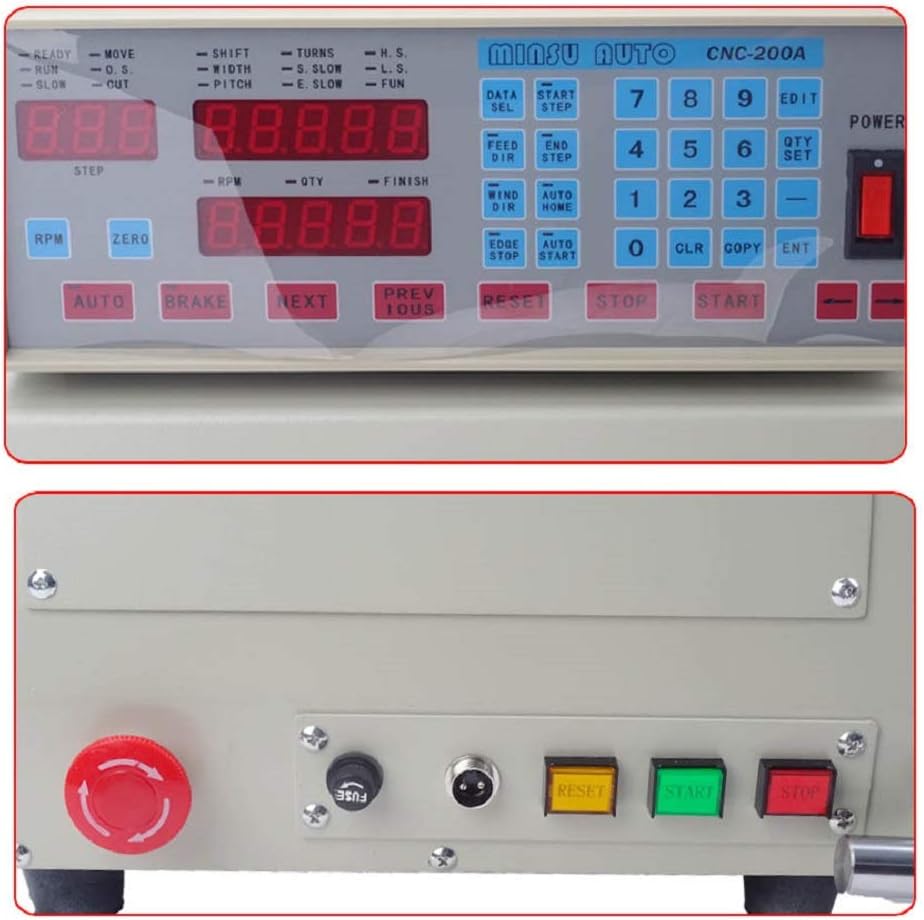

MXBAOHENG Computer CNC Automatic Coil Winder Winding Machine for 0.03-1.2mm Wire 750W 110V/220V

SpecificationNumber of axes: (right out) single axisVoltage: 110V/220VCop motor:three phase machine 750WWinding displacement machine:step-servo motorSpindle motor: Brushless DCApplicable wire diameter: 0.03-1.2mmMaximum winding width:108mmMaximum rotation diameter:200mmMaximum turning speed 6000 r/min,speed adjust functionStorable winding groups:999 groupsCounting resolution:0.05 circleComplete appliance weight:30kgMachine size:32*34*40CM

• 1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process . 2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.
• 3.Has vernier caliper functions and can measure the winding width and starting point easily. 4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator also can synchronize with it.
• 5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines. 6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.
• 7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding).
• 8.Foot-switch connection for better efficiency. 9.Winding parameters and options can be set independently for each step. 10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.
