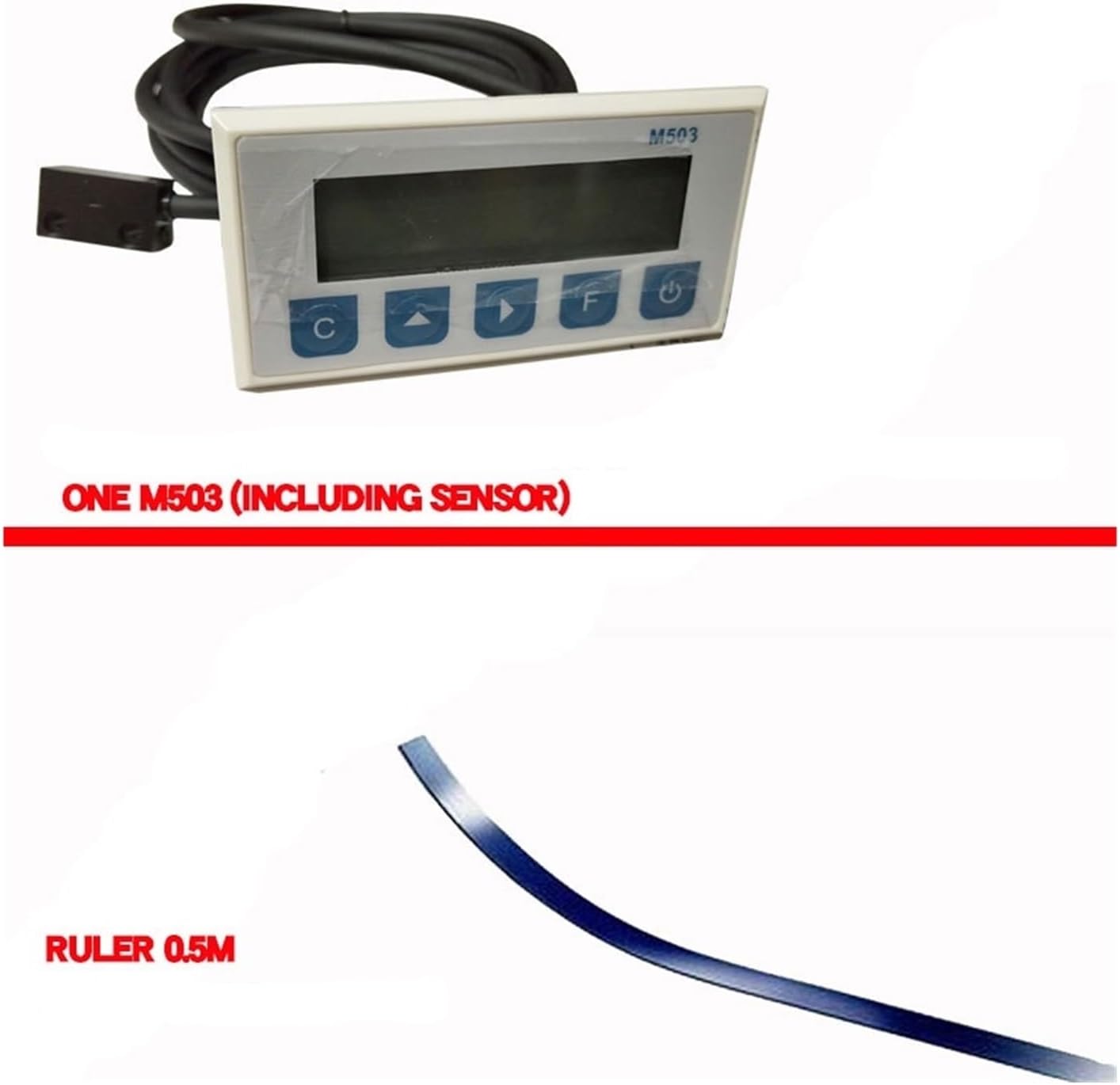

M503 Miniatur Magnetic Grid Scale Integrated Embedded Measurement System Linear Encoder Digital DRO (M503one Set 1)
Product details
| Management number | 219355634 | Release Date | 2026/05/03 | List Price | $38.00 | Model Number | 219355634 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
System accuracy: + (0.03+0.01*L) mm Repeatability: Max. + 0.01mm Resolution: 0.01 0.05 0.11 range: -1999999-9999999 Consumption current: Max.500UA (backlight not opened) Power supply: two batteries No. 5 (AA) Operating temperature: 0 degrees ℃ -60 degrees ℃ Storage temperature: -10 degrees ℃ -70 degrees ℃ Outline size: 100*52*30mm Opening size: 92*42mm Read line length: 1m customizable (2M 3 5M 6M). e speed: Max.5m/s Read gap: Max.2.5mm, recommended 1.5mm Matching magnetic stripe: TR50 Waterproof grade: digital IP40, read head IP60
- Ultra-miniature design: With a cross-sectional area of ??only 16mm x 16mm, the KA200 is for use in small spaces and is easy to install
- High-precision measurement: Each KA series linear encoder undergoes rigorous quality inspection to ensure that the accuracy meets the standard before leaving the factory
- Dynamic control: Using advanced dynamic control technology to improve measurement accuracy and reliability
- Compatible with special measuring instruments: Suitable for a variety of special measuring instruments to meet the needs of a variety of industrial applications
- Easy to install: The simple design allows for flexible installation in narrow spaces and improves ease of use
| Manufacturer | NUHSLF |
|---|
