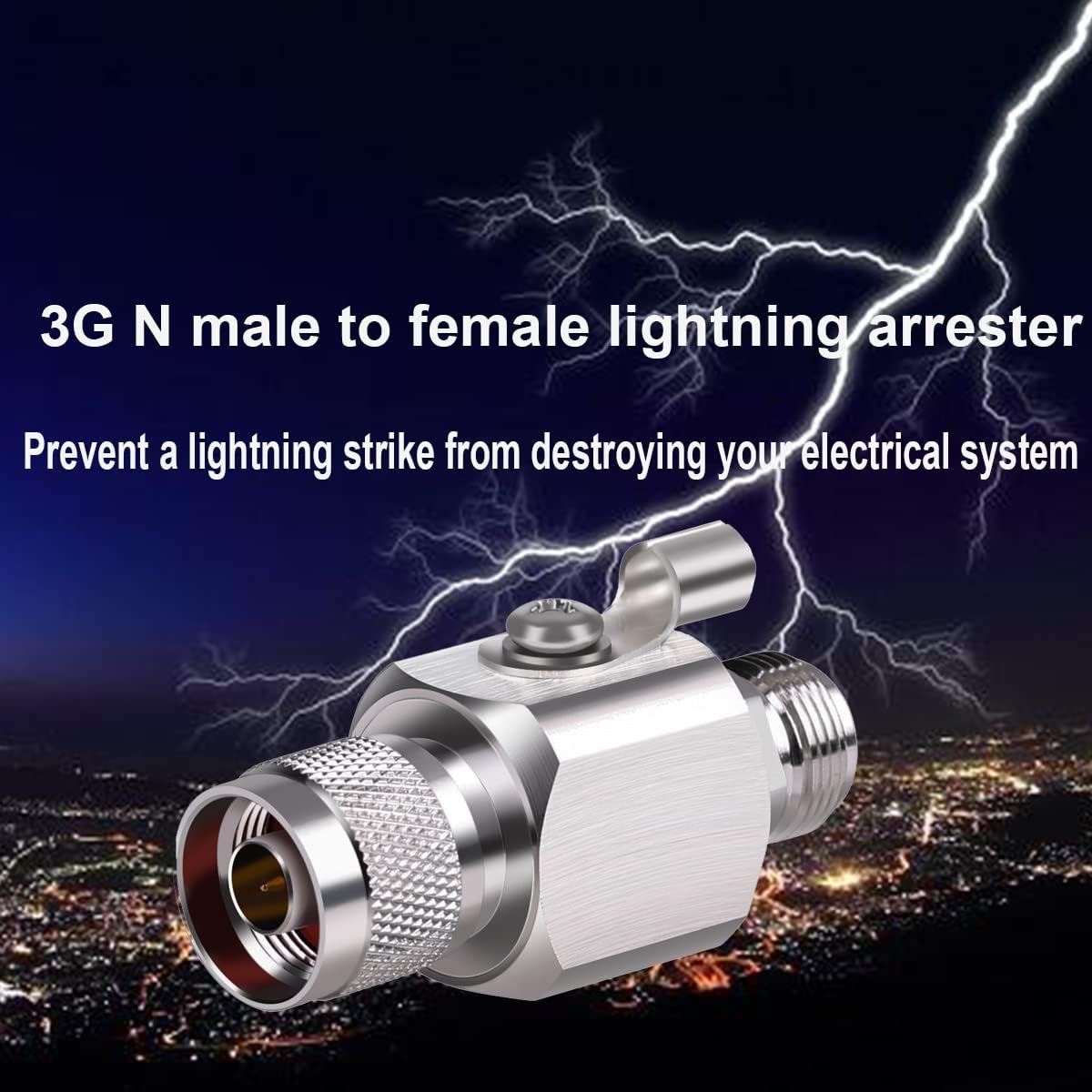

Lightning Surge Protector Square N Male to Female 50 Ohm 0-3GHz with 90V Gas Tube Lightning Arrestor

1.Materials & Plated: Body brass nickel plated,Teflon(PTFE) Insulator for a reliable signal every time Connectors: N-Male to N-Female 50 ohm RoHS compliant 2.Electricail Characteristics： Contact Resistance:Center conductor ≤ 1mΩ, Outer conductor ≤ 1mΩ Max Power:50W Insulation Resistance :≥ 5000MΩ Durability :≥ 500 cycles Temperature range: -40°C to +85 °C Frequency Range up to 3 GHz Attenuation is less than 0.2 dB VSWR less than 1.2 3.Package include: 1 piece N surge protector 4. Protects signal boosters from lightning strikes： Prevent a lightning strike from destroying your electrical system. The 50 ohm Arrester with N Male to Female Connectors can be installed to prevent expensive damage from incapacitating your circuitry. The arrestor safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside Arresters should be installed as close a possible to the equipment to be protected, often at the point where the cable enters the building. They can also be installed near the antenna for additional protection.

• 1.N type male to female Connectors 50 ohm , broad bandwidth DC-3 GHz Covers 2G 3G and 4G LTE Cellular , Attenuation less than 0.2 dB / VSWR less than 1.2
• 2.50 Ohms Compatible with 50 Ohm Cellular Boosters, CATV, Satellite TV, Protects signal boosters from lightning strikes, Requires additional ground cable
• 3.It is with a replaceable Gas Discharge Element with High Surge Power Capability and Bi-directional Protection ( 90V Gas tube)
• 4.DC Pass for Remote Powering of Amplifiers and LNA's
• 5.Lightning protector should be installed as close a possible to the equipment to be protected, often at the point where the cable enters the building. They can also be installed near the antenna for additional protection
