JET 20-Inch Smart Drill Press, Variable Speed, 1.5 HP, 115/230V 1Ph (JDP-20S)
Product details
| Management number | 218670841 | Release Date | 2026/05/03 | List Price | $960.00 | Model Number | 218670841 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

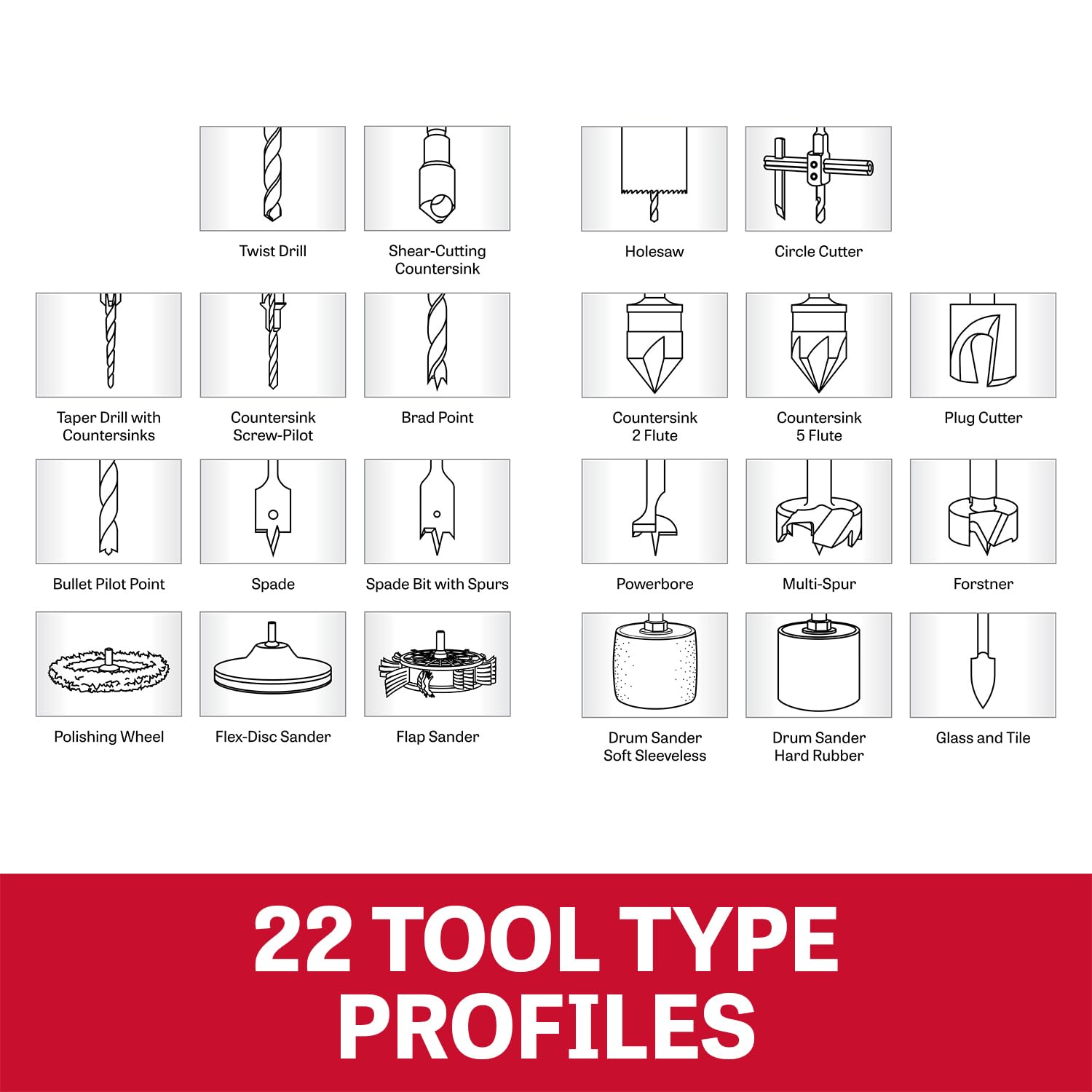

EFFORTLESS SETUP.FLAWLESS RESULTS.Meet the JET JDP-20S. The first true Smart Drill Press in the JET lineup, built to redefine precision, power, and ease of use in woodworking. This floor-standing machine combines advanced digital intelligence with industrial-grade performance, unlocking new capabilities for pros, schools, and serious DIYers.THE JET ADVANTAGESSmarter Work Starts Here: A vibrant 5" touchscreen user interface puts control at your fingertips, with 22 tool types, 15 customizable user presets, and RPM recommendations based on your bit and material. The intuitive interface is built for all skill levels. Woodworkers can lock settings with password protection to prevent unauthorized users or setting changes.No Guesswork, Just Results: Built-in load monitoring, preset memory, and a guided interface mean every user gets professional results with minimal setup time.Bigger Capacity, More Possibilities: Featuring a 20" swing, 6" spindle travel, and a tilting cast iron table, this is the largest and most versatile drill press JET has ever made.Engineered for Performance: The 1.5-HP brushless motor delivers smooth, consistent power for demanding jobs, with better reliability, less wear, and quieter operation than belt-driven systems. The integrated LED light and laser guide illuminate your work and ensure precise bit alignment for fewer mistakes.Competitive Edge: Outperforms the competition with smarter technology, easy to use touch-screen interface and an industry leading 5-year warranty.IDEAL FOR:Professional WoodworkersAdvanced DIYersEducational InstitutionsLight ManufacturingUsers who want precision, ease of use and repeatable results
- Big Capacity & Power: 20" swing, 6" spindle travel, and a 1.5-HP brushless motor for consistent torque and performance

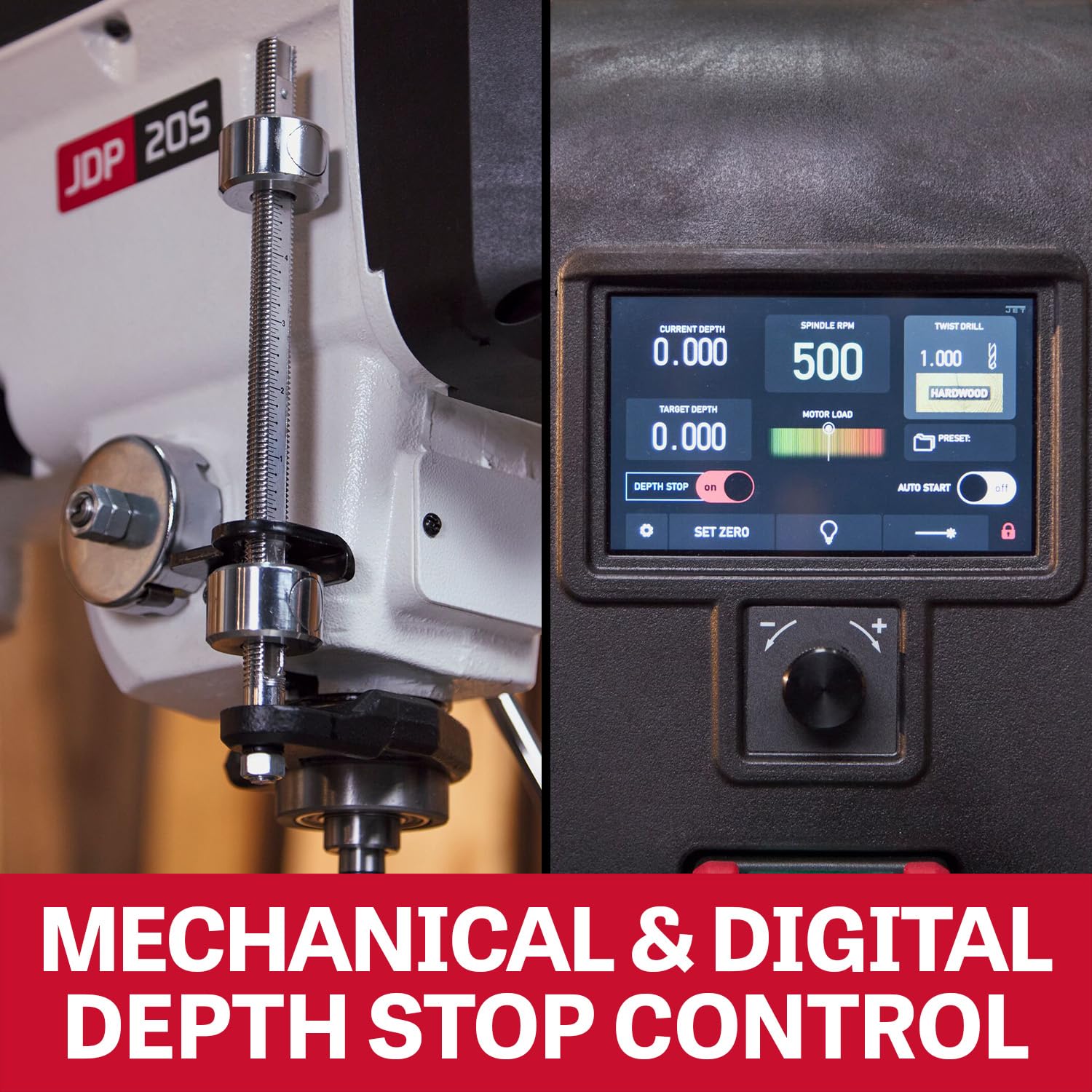

- Precision at Every Step: Electronic/manual depth stops, crosshair lasers, and LED lighting for flawless alignment
- Versatile Work Surface: 20" x 14" cast iron table tilts 90° left/right for angled drilling
- Flexible Speed Control: Continuously variable from 150–3000 RPM via touchscreen or manual dial
- Customizable Efficiency: Save up to 15 preset settings for project repeatability
- Smarter Workflow: Multi-format measurement options (decimals, fractions, metric)

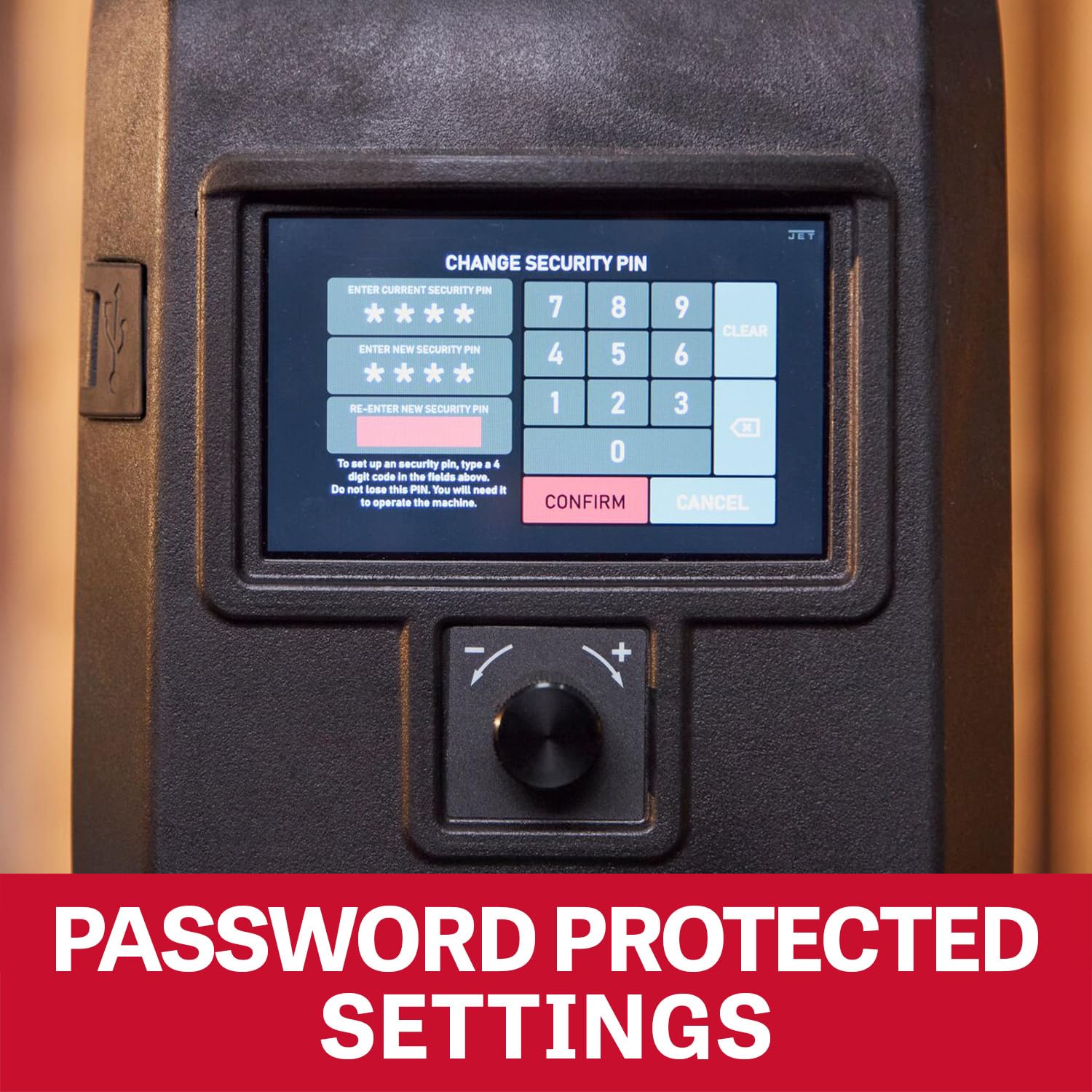

- Password Protection: Restrict access with password lock for added security
| UPC | 019907897750 |
|---|---|
| Color | Black |
| Speed | 3000 RPM |
| Voltage | 115 Volts |
| Amperage | 13 Amps |
| Brand Name | Jet |
| Drill Type | Drill Press |
| Unit Count | 1.0 Count |
| Item Weight | 220 Pounds |
| Manufacturer | JPW Industries |
| Model Number | JDP-20S |
| Power Source | Corded Electric |
| Material Type | Cast Iron, Steel |
| Maximum Power | 1.5 Horsepower |
| Item Type Name | Floor Drill Press |
| Maximum Chuck Size | 16 Millimeters |
| Additional Features | Continuously Variable Speed, Customizable User Presets, LED Worklight, Laser Guide, Password Protected Settings, Reversible Spindle |
| Included Components | Headstock Assembly, Column Assembly,Base, Table & Table Bracket Assembly, Worktable Rack, Rack Ring, Worm Shaft, Table Elevating Crank Handle, Lock Handle, Drift Key Chuck Key Seat, Hardware, Hex Wrenches (3/5/6/8mm), Chuck, Chuck Key, Arbor, Downfeed Handles, USB Adapter |
| Manufacturer Part Number | JT1-2060 |
| Maximum Rotational Speed | 3000 RPM |
| Item Dimensions L x W x H | 24"L x 25.5"W x 71.5"H |
