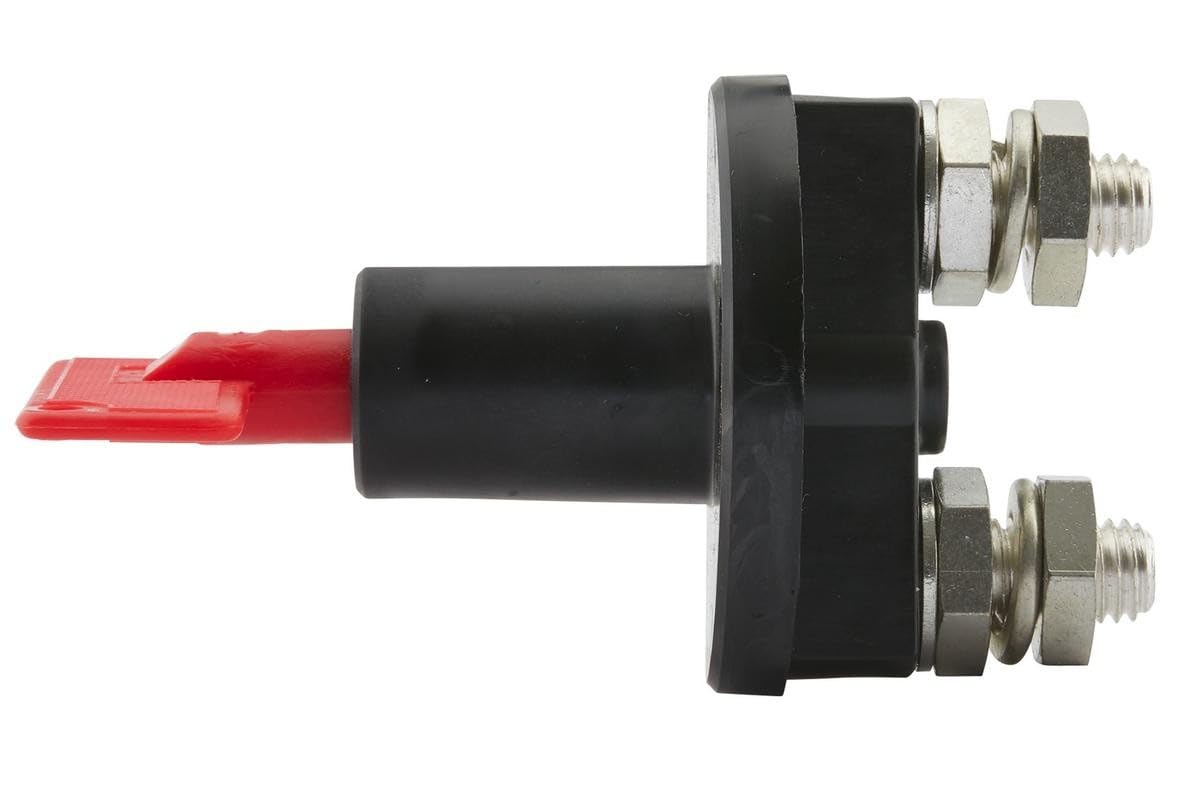

HELLA Battery Disconnect Kill Cut-Off Switch Isolator 6EK002843-057
$38.72
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by coachtoriocuritiba.com.br
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$38.72
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by coachtoriocuritiba.com.br
Free 30-day returns Details
Product details
| Management number | 215211867 | Release Date | 2026/04/12 | List Price | $15.49 | Model Number | 215211867 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
By HELLA.
- Battery switch with red switch key and silver-plated screw contacts - for battery and ignition current
- Optionally plus or minus line can be switched off, key can be removed in "Off" position
- 2 screw connections, contains 2 screw nuts per bolt
- The continuous load capacity is max. 50A at max. 80° C ambient temperature and a 35 mm cable connected with ring tongues.
- Replacement key: 9SL 706 729-031.Capacity at 24V: max1000 A/10 sek/24V.Prot.type (IP Code): IPX2 rear/IPX4 front - DIN/ISO: 40050
| Color | Black |
|---|---|
| Model | 6EK 002 843-051 |
| Wattage | 1200 watts |
| Terminal | Screw |
| Brand Name | Hella |
| Unit Count | 1.0 Count |
| Item Weight | 0.17 Kilograms |
| Switch Type | Kill Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | HELLA |
| Actuator Type | Isolator |
| Material Type | Kunststoff |
| Mounting Type | Panel Mount |
| Connector Type | Molex |
| Control Method | Touch |
| Current Rating | 1000 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 3.54 x 2.95 x 3.15 inches |
| Number of Items | 1 |
| Contact Material | Metal |
| Operating Voltage | 24 Volts |
| Specification Met | Din 40 050 - Ipx2 |
| Included Components | Item |
| Number of Positions | 2 |
| International Protection Rating | IP54 |
