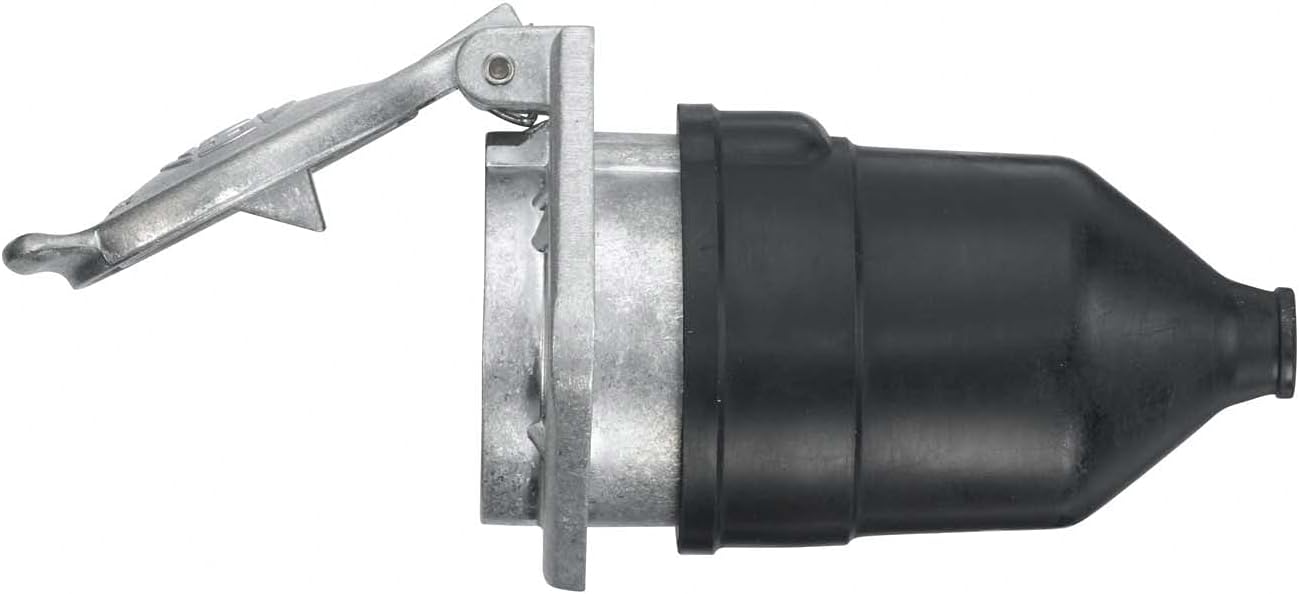

HELLA 8JB 003 834-001 Socket - 24V - 7-pin connector - Plug: Screw Contact - Metal - DIN/ISO: 3731
Product details
| Management number | 212641559 | Release Date | 2026/04/06 | List Price | $14.31 | Model Number | 212641559 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The 7-pin 24 V plug-in system according to ISO 1185 / ISO 3731 is currently the most widely used system for the electrical connection between towing vehicle and trailer or tractor and semi-trailer in the commercial vehicle sector. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1185 and an additional connector, type S, according to ISO 3731. The additional system differs from the standard system by its white housing, contact inserts and non-interchangeable contact arrangement.
- Original equipment quality
- Easy assembly

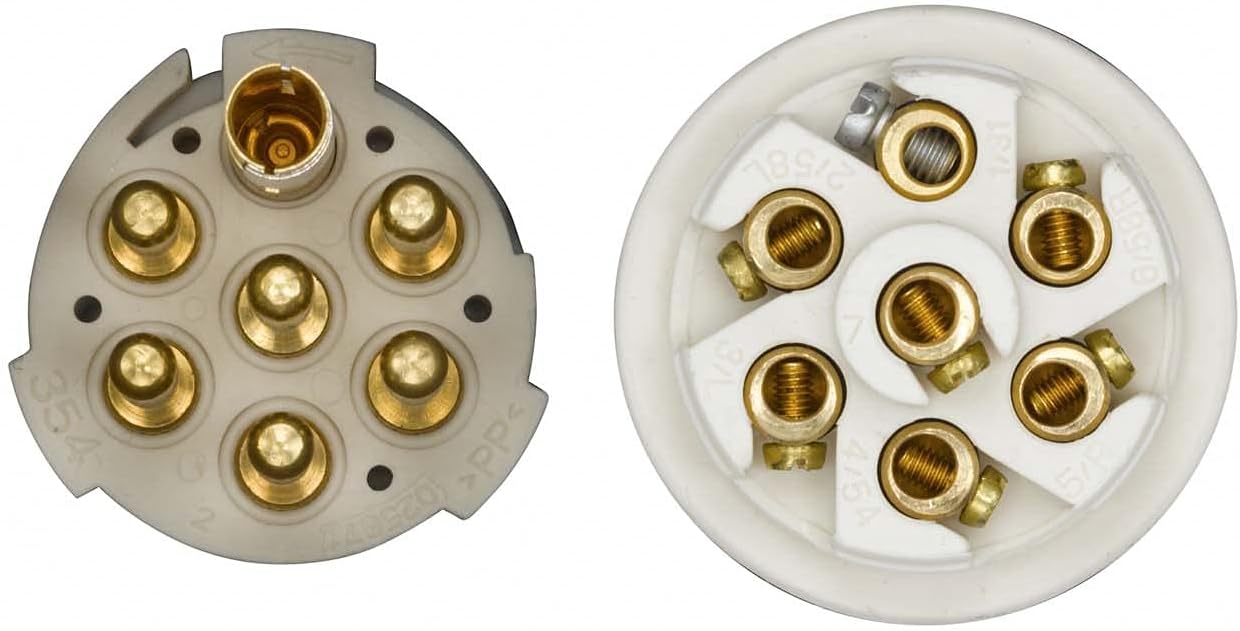

- 7-pole plug-in system according to ISO 37 31 (S-type)
- Capacity at 24V: 15A
- with lid
| Brand | Hella |
|---|---|
| Model | Steckdose |
| Voltage | 24 Volts |
| Item Weight | 5 ounces |
| Manufacturer | Hella KGaA Hueck & Co. |
| OEM Part Number | 8003944;35427048;130 1754;1301754;8179064;7000 447;7000447;99707000447;003659;111083;24 72 1019;24721019;56453;505806853;5806853/0;58068530;1134634;B17-0125-2;B1701252;6 052 163 01;605216301;000,579,2087;0005792087;82.25432.0035;82254320035;5043703;263995004;5003016;99710107;1 912 038;1912038;17 834 001;17834001;20 044 865;20044865;20 223 818;20223818;060145;528652;S060145;186-520-0361;1865200361;2800090001;417332;8003944;2 126 499 7;21264997;402749 |
| Item model number | 8JB 003 834-001 |
| Product Dimensions | 7.28 x 5.51 x 6.5 inches |
| Manufacturer Part Number | 8JB 003 834-001 |
| Is Discontinued By Manufacturer | No |
