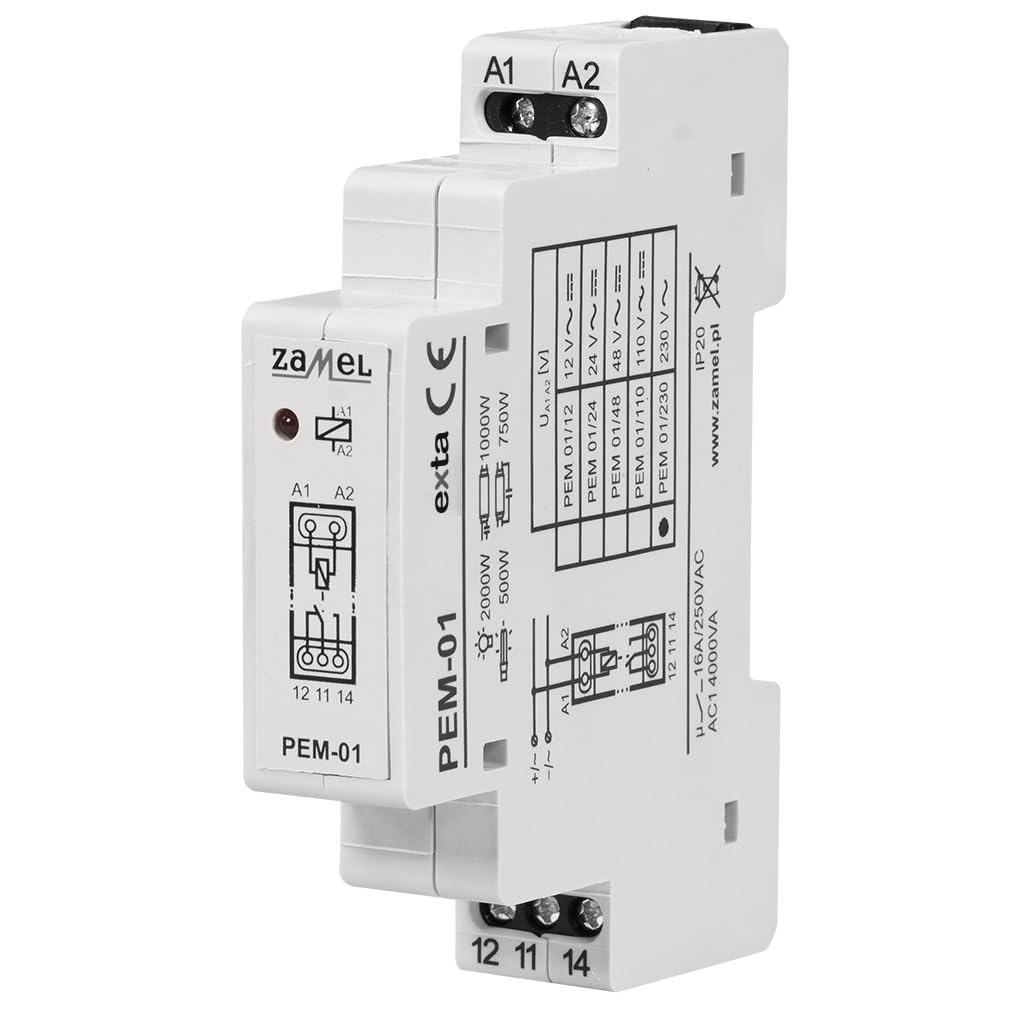

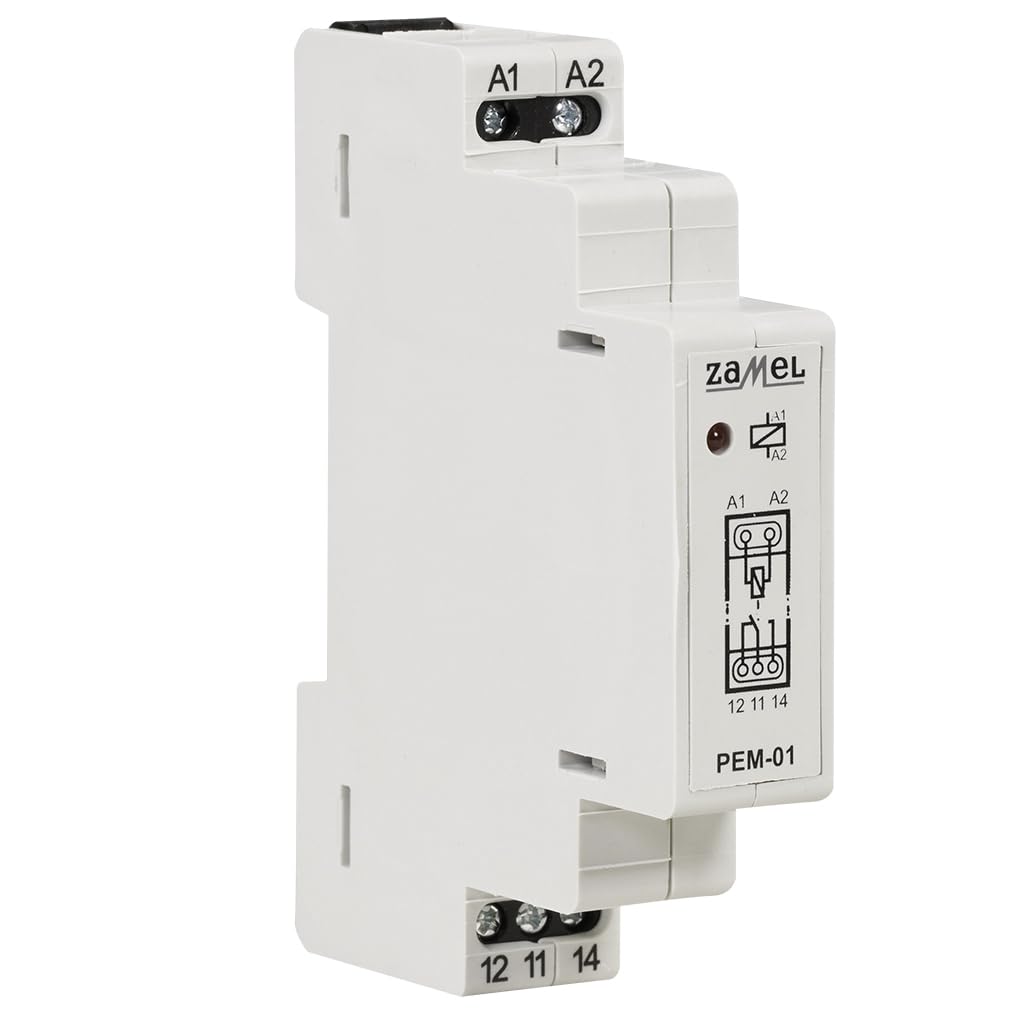

Exta Electromagnetic Relay Switch, Pack of 1, PEM/230
Product details
| Management number | 218081013 | Release Date | 2026/05/03 | List Price | $10.18 | Model Number | 218081013 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

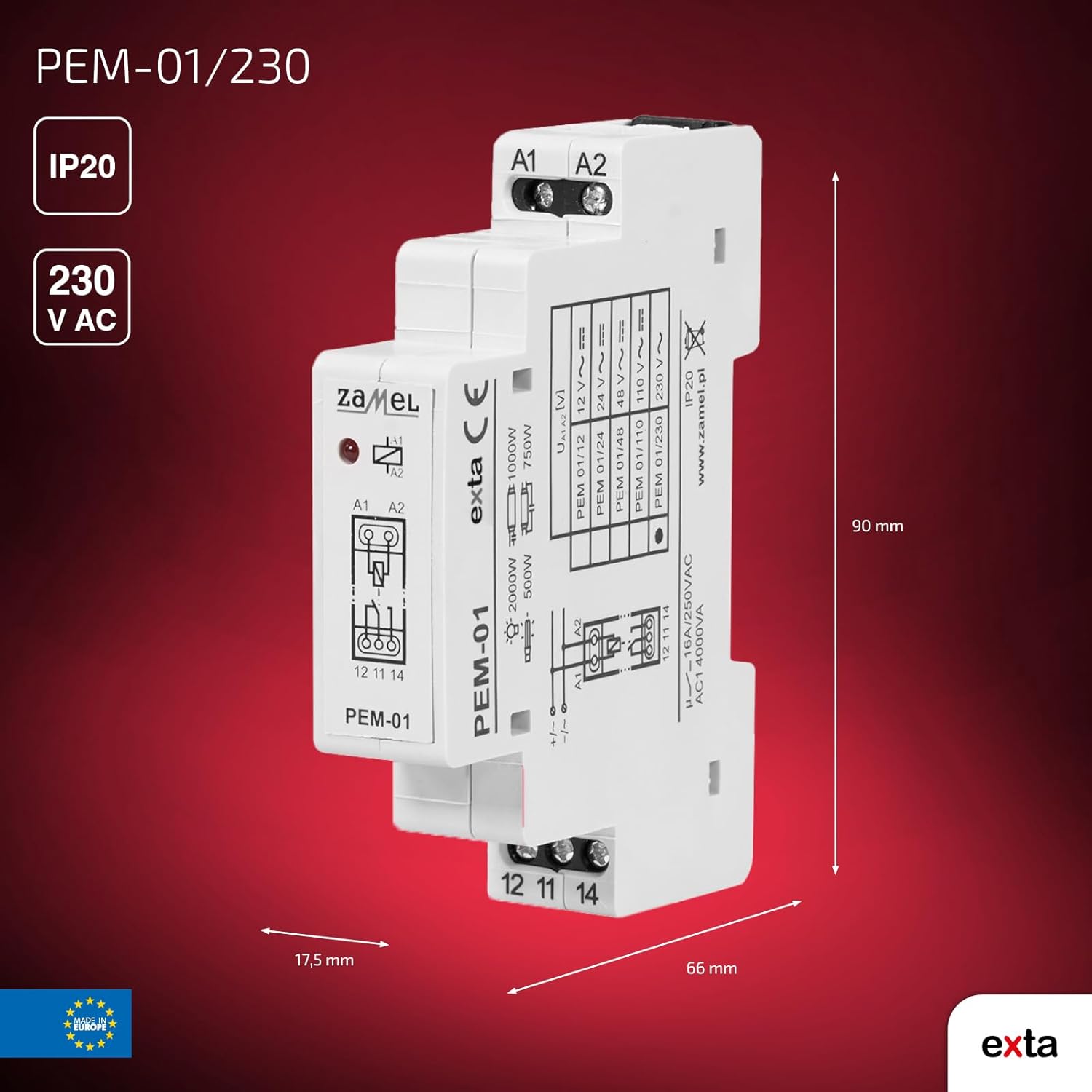

Electromagnetic relays can be used in various applications where a load current increase is required. The relays ensure voltage insulation between a control unit and a load circuit. The relays are equipped with N/O contacts and can be connected with a voltage of 0 to 250 V AC to the contacts. Commercial data (PEM-01/230) Dimensions monomodular (17.5 mm) 90 x 17.5 x 66 mm packaging 60 [pieces] Weight 70 g Technical data (PEM-01/230) Input rated voltage 230 V AC / DC max. Output voltage 250 V. Application category AC1 Max. Power of the relay 4000 VA relay contacts locking 1NO / NC output relay 16 A rated power consumption 23.2 mA protection class IP20 mounting rail TH35 (PN-EN 60715)
- Can be used in various other
- With closer/Opener
- Power supply from 0 ÷ 250 V AC möglich
| Model | PEM-01/230 |
|---|---|
| Wattage | 4000 watts |
| Brand Name | EXTA |
| Unit Count | 1.0 Count |
| Part Number | PEM-01/230 |
| Coil Voltage | 250 Volts |
| Contact Type | Normally Closed |
| Manufacturer | Zamel Sp. z o.o. |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 16 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 10.74 Kiloohms |
| Contact Material | Silver |
| Specification Met | Iec/Fr 60947 |
| Contact Current Rating | 16 Amps |
| Maximum Switching Voltage | 250 Volts |
| Minimum Switching Voltage | 230 Volts (AC) |
| Global Trade Identification Number | 05903669010968 |
