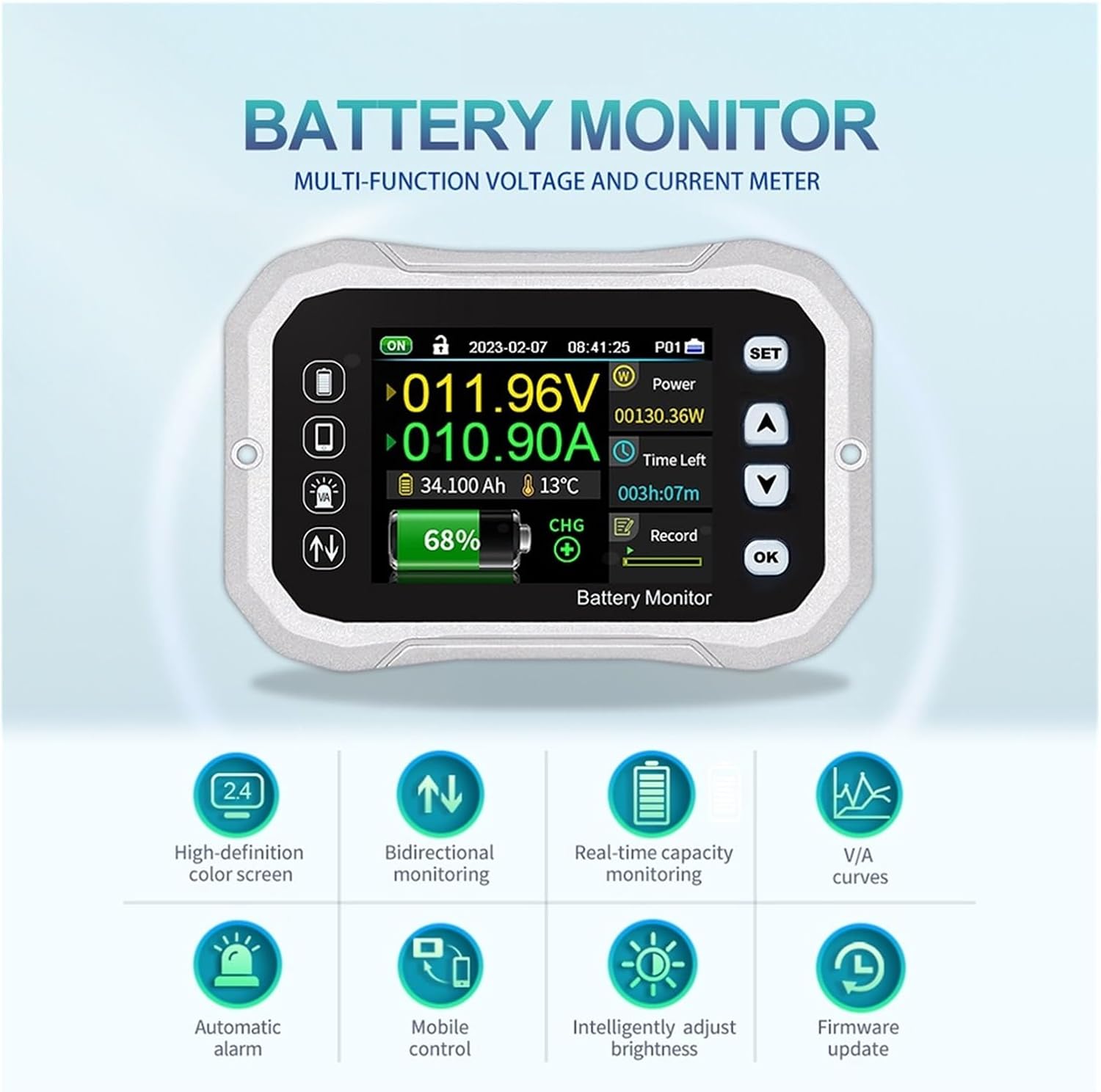

Battery Monitor Bluetooth Control DC 0-120V Battery Tester Voltage Current Coulomb Meter Capacity Indicator(B 0-120V 0-400A)

Parameters:Sampling method: shuntVoltage measurement range (external power supply): 0-120VVoltage measurement range (self power supply): 10-120VVoltage resolution: 0.01VCurrent measurement range:Type A：0~100AType B：0~400AType C：0~600ACurrent resolutionType A：0.01AType B：0.1AType C：0.1ARelay: no relay is provided, it needs to be configured by itselfTemperature measurement range: - 20-120CCapacity display range: 0%~100%Power measurement range: 0~72KWPower resolution: 0.01WHourly measurement range: 0~9999.99AhCapacity resolution: 0.001 AhWatt-hour measuring range: 0~9999.99kWhWatt-hour resolution: 0.001WhTime measurement range: 0~999:59:59STime resolution: 1 secondBluetooth communication distance: the maximum barrier-free communication distance is 10 metersVoltage accuracy:+1%+2 wordsCurrent accuracy:+1%+5 wordsSampling rate: 1 time/secondMeasuring board power consumption: about 04WDisplay meter power consumption: about 0.5WOverpower protection: 0-99999.99WDischarge overcurrent protection: 100A/400A/600ACharging overcurrent protection: 100A/400A/600AOvervoltage protection: 0~120VExternal over-temperature protection: - 20-120 ° CProtection recovery time: 0-99sStandby time: 0-60sDelay time setting: 0-99sMailing address: P01-P99, 99 in total

• The shortcut key made of silicone material not only greatly simplifies the operation steps, but also feels comfortable.
• Acrylic panel design, more robust, longer service life, can effectively protect the screen.
• After the interface optimization, the font size will be larger and the layout will be more reasonable.
• Wide range of applications: lead-acid batteries, lithium ternary batteries, lithium iron phosphate batteries and other types of batteries, as long as the battery voltage is within the measurement range, all are applicable.
• Small size easy to carry small size more lightweight.
