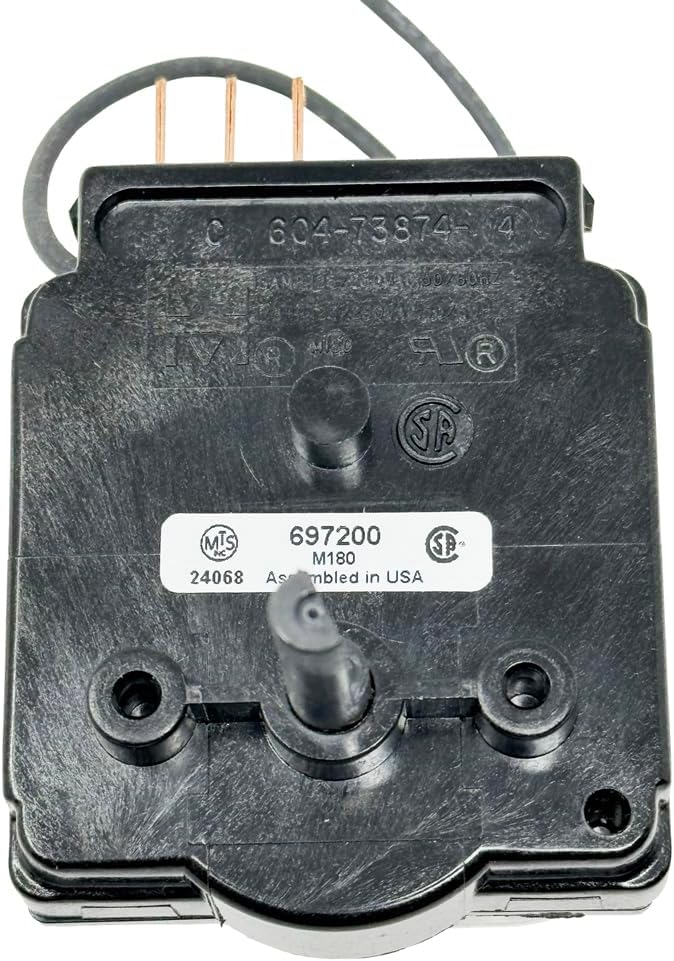

Battery Charger Electromechanical Timer Kit - 120 Min with Hold - Includes Knob, Mounting Screws, Dial Labels - Replaces Associated 611245, by Power Forged (697202)

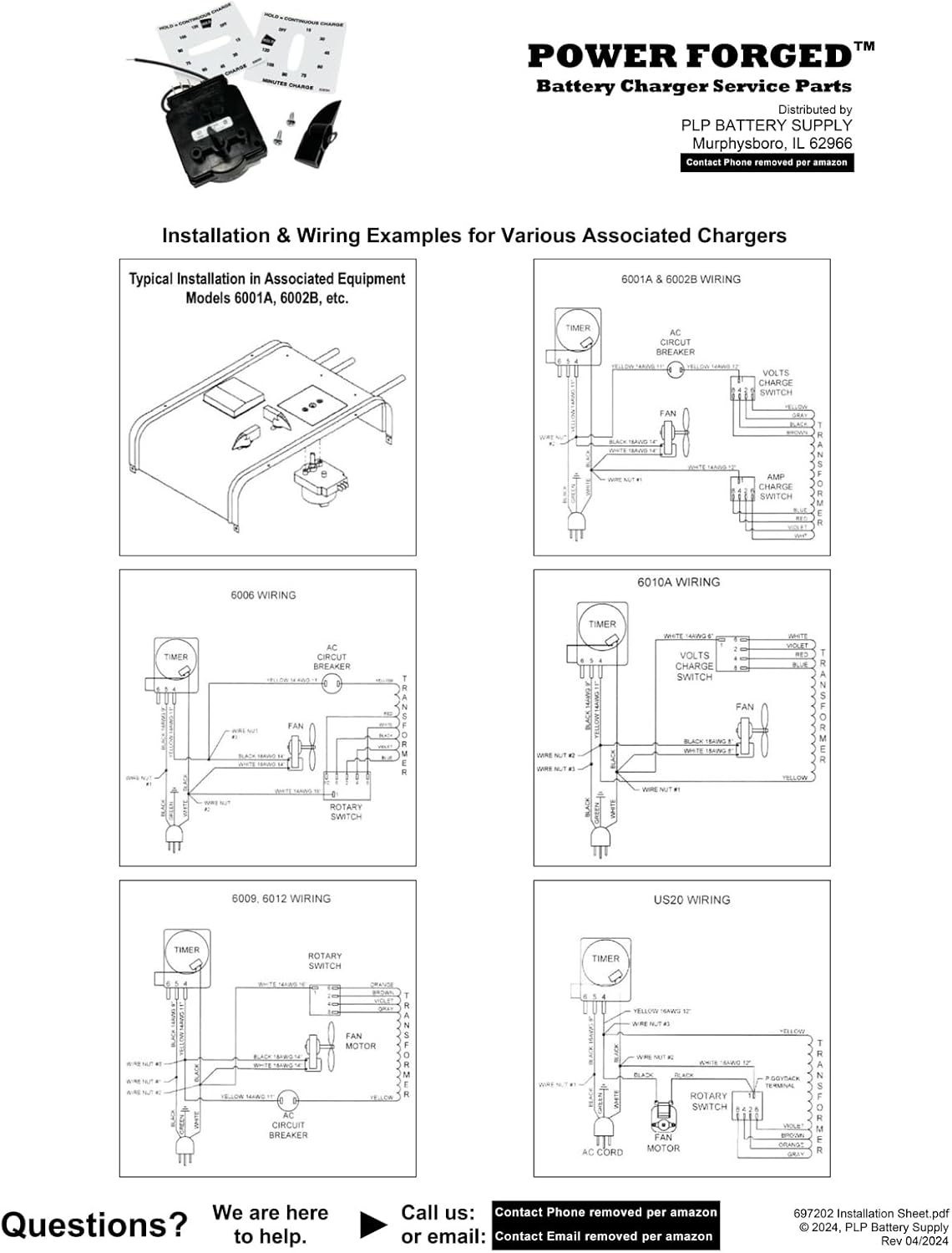

Battery Charger Electromechanical Timer Kit - 120 Min with Hold - Includes Knob, Mounting Screws, Dial Labels - Replaces Associated 611245, by Power Forged (697202). This is also the same timer used in the Associated 611254 Timer upgrade kit, but does not contain any of the upgrade components included in the 611254 kit. This popular timer is used in virtually all chargers manufactured by Associated Equipment, such as models 6001A, 6002B, 6009, 6006, 6010, 6012, US20 and more. Easily installs with 2 - #6 Phillips screws (included) through the charger panel and into the body of the the timer. An OEM-style spring-clip pointer knob is included. Wire terminals use .250" industry-standard solderless push-on connectors. No specialty tools required. This switch typically mounts in one of two orientations: 1. Horizontal Mount - the mounting screws are aligned horizontally (at 3 and 9 o'clock) and the OFF position is at approximately 2 o'clock on the timer dial face. 2. Vertical Mount - the mounting screws are aligned vertically (at 12 and 6 o'clock) and the OFF position is at approximately 11 o'clock on the timer dial face. In either orientation, the timer has a "HOLD" position (constant ON) when rotated counterclockwise from OFF by approximately 15 degrees. Otherwise, when rotated clockwise to a set position, it will countdown back to the OFF position and power off the charger. Specifications: - .250" Push-on connectors - Switched Current Rating - 15A, 125/250VAC, 50/60HZ - Timer body - 2.476"H x 2.01"W x 1.969"D - Stem - .815"L x .248" Diameter Contents: 1 - 697200, 120-minute electromechanical timer (EXACT OEM replacement for Associated 611245) 1 - 696550, spring clip pointer knob (EXACT OEM replacement for Associated 603147) 2 - 609063, mounting screws 1 - 609063, timer dial label - horizontal mount 1 - 609064, timer dial label - vertical mount 1 - Installation Instructions Cross Reference: Compatible Timers Associated Equipment 611245

• Direct Replacement for Associated 611245
• 120 Minute duration, with "HOLD" position
• Mounts in charger panel with included screws
• Industry-standard .250" solderless push-on connectors
• Straightforward instructions and simple design allows easy installation. No special tools are required
• OEM Knob with spring-clip retainer included
• Made in the USA
• Sold, Shipped, and Supported by PLP Battery Supply in Murphysboro, IL, USA. Questions? We are real people, based in the U.S.A. Our phone number and email is included with every product.
