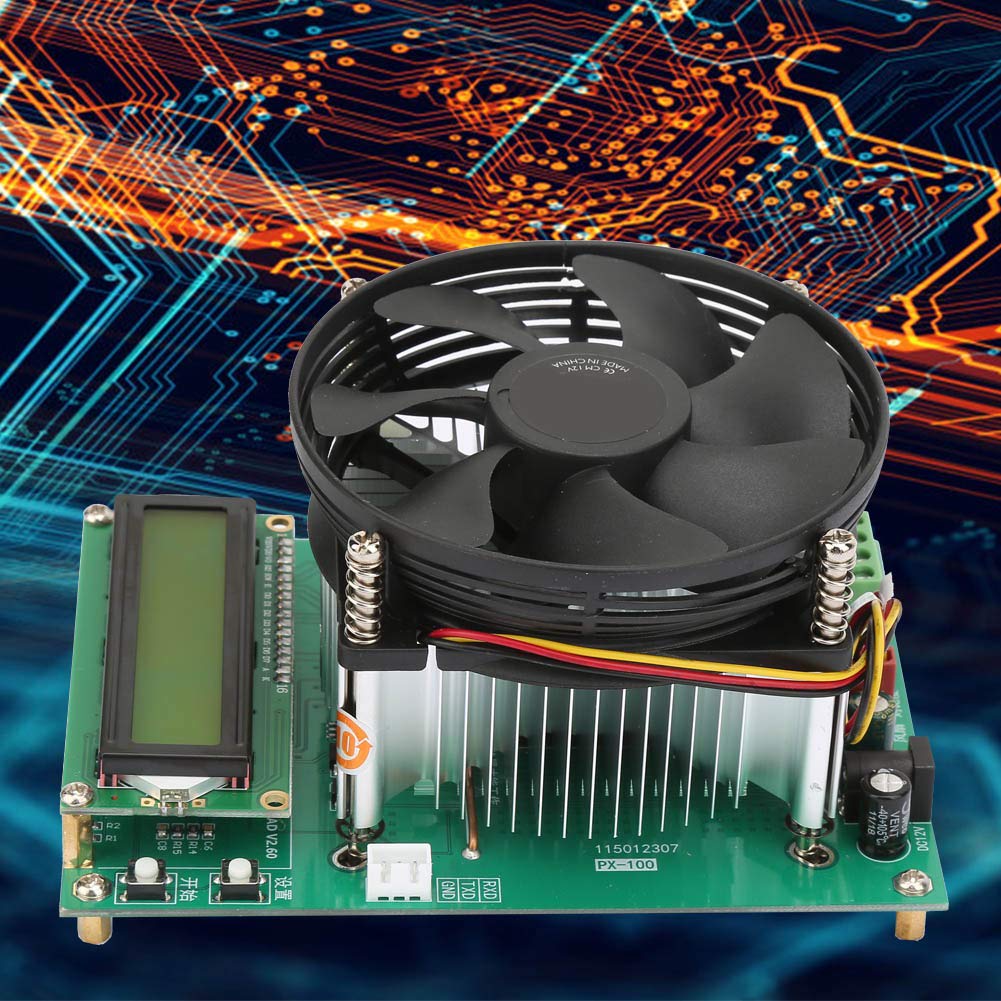

Battery Capacity Tester, DC12V 0-10A 150W Constant Current Electronic Load Board Battery Discharge Capacity Tester Module

Specifications:Voltage: DC 12V±5% Load Type: Constant currentLoad Voltage: 0.5-60V Load Current: 0-10A Maximum Power: 150W Voltage Reading Precision: ±(0.1%+0.05%FS) Current Reading Precision: ±(0.2%+0.1%FS) Constant Current Accuracy: Current reading Precision + 1dNoise: 25dD(A) Weight: 341g(approx.)Instruction:Wiring Diagram of 2 Wires(Safe and convenient):Note: 2 wires must be respectively connected to A+ and A-. V+ is connected to A+, and V- is connected to A-.Wiring Diagram of 4 Wires: Note: 4 wires must be connected completely before use.4 wires can offset voltage drop caused by electric wires under large current and ensures a more accurate voltage measurement. It is recommended if you are a professional. 4 wires must be all connected correctly before you power on the load. Wrong wiring is likely to cause damage, please make sure the wiring is correct! As you can see in the picture, there are thick wires and thin wires. The thick wires are for current, the thin wires are for measuring voltage, and of course you can use thick wires for all.Package Includes:1 x Electronic LoadNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• 150W power refers to: according to the power calculation formula P = UI (power = voltage x current); 15V input about 10A discharge current 20V input about 7.5A discharge current 30V input about 5A discharge current.
• Description: This is a very cost-effective electronic load board that uses two completely independent 18-bit ADC chips with a 15 PPM voltage reference, allowing high precision. It is superior to other electronic loads with a single-chip built-in AD sampling digital tube display or battery capacity tester. Supports user secondary correction parameters and is the best choice for DIY users.
• Features: 1602 LCD screen, comprehensive display information. Equipped with 9cm CPU fan, very quiet. With temperature display, support discharge and voltage settings. The maximum load power is 150W, the maximum voltage is 60V, and the maximum current is 10A.
• Used to: test various power loads or aging, and can also test battery discharge capacity.
• Note: The discharge power of the fuselage cannot exceed 150W, otherwise there is a risk of burning out.
