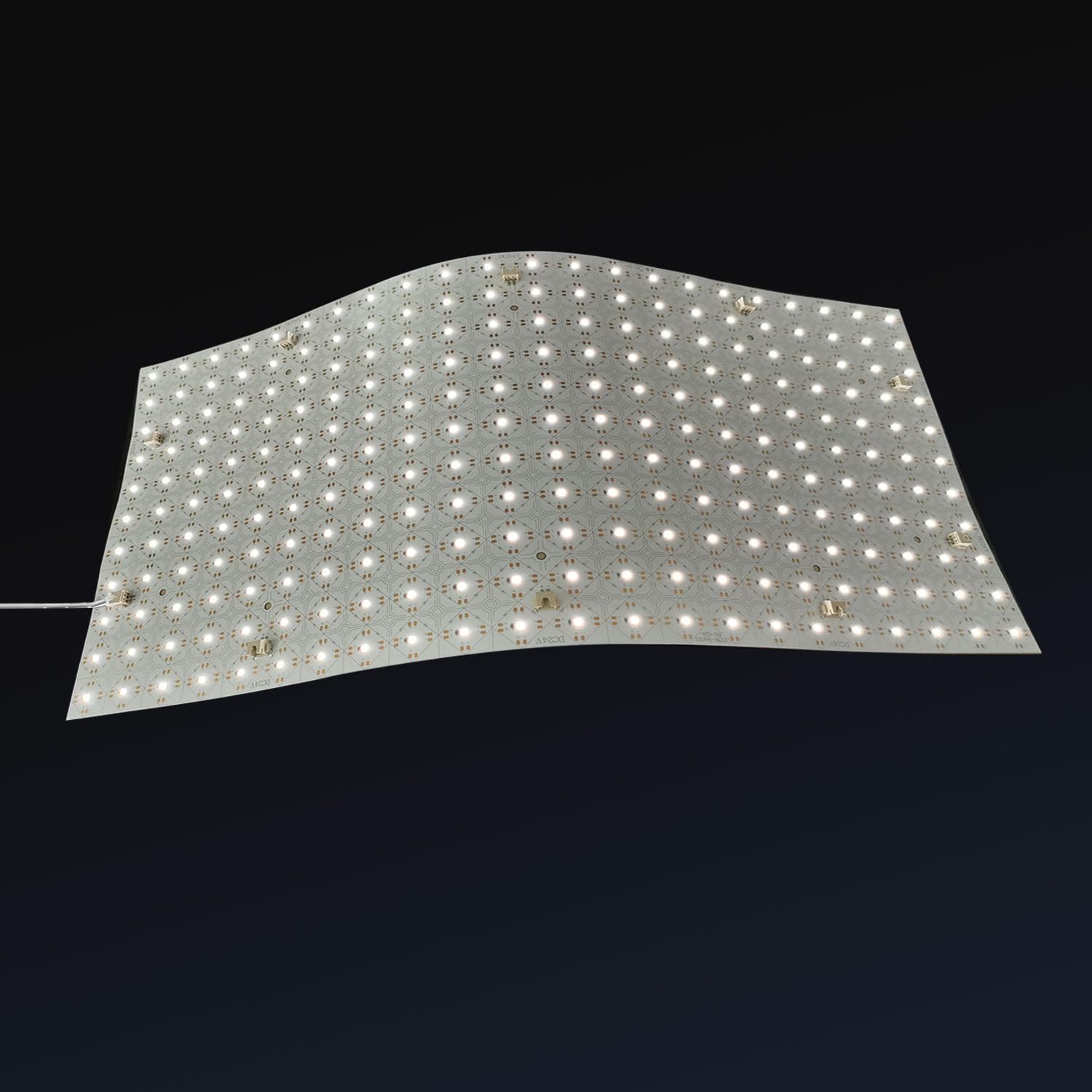

ATA 4Pack LED Backlight Sheet 24V 36W White 6000K Dimmable LED Panel Sheet Compatible with Flexible Backlit Light 19.7X9.7Inch for Marble Onyx Translucent Quartz Countertop (6000K 4Pack 36w)
Product details
| Management number | 219160646 | Release Date | 2026/05/03 | List Price | $36.00 | Model Number | 219160646 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【 Necessary configuration 】To make the LED backlight shee working, 24V power supply is needed (24V DC power supply is not included), If your power supply has a dimmer function or you do not need a dimmer, the controller is not needed. Amplifier is needed when you use the controller and the LED sheet is over 6pcs. ATA is recommended and can be found on Amazon.
- 【High Brightness & Flexible & Cuttable】Each flexible led panel sheet measures 19.7X9.7 inches. With min cut size 0.87'' x 0.87'' ( 22mm x 22mm) 36W of power while emitting an impressive 3600 lumens of light. With a remarkable CRI of 95+, you can count on stable, enduring brightness and true-to-life colors. Best when used behind natural stone or quartz.
- 【Easy to Install 】Our modular flexible backlight sheet comes with all the accessories for a easy setup(24V DC power supply is not included), these includes 4 pcs LED sheet, total 5 square feet. 8 pcs short connect line each is 2.5-inch length, 8 pcs long connector line each is 6 inch, 32 spacer/ standoff, 1 installation manuals. so you're fully equipped for a smooth installation process.. The led light sheets provide 3M adhesive and screws mounting. the total distance should not exceed 6.5 feet from the power source input to the farthest end of any interconnected sheet
- 【Ideal Backlighting for Semi-transparent Countertops】Ata LED light sheets are commonly used to back-lite translucent stones such as quartz, onyx, agate, marble, natural stone, scenes such as kitchens, bars, reception desks, etc.Note light spots if your countertop is glass or thin 1/4” (＜7mm). Opt for natural stone thicker than 3/4”(19mm). Test how your surface reacts to light beforehand.
- 【Long-lasting Work Life & Worry-free after sale】High quality LED ensures 50,000 hours life span.
| Color | 6000K |
|---|---|
| Theme | Space |
| Wattage | 36 watts |
| Occasion | Decoration, Seasons |
| Bulb Base | GU24 |
| Brand Name | ATA |
| Unit Count | 4.0 Count |
| Form Factor | Sheet |
| Item Length | 19.3 Inches |
| Item Weight | 7.04 ounces |
| Light Color | White |
| Manufacturer | SHENZHEN ATA TECHNOLOGY CO.,LTD |
| Model Number | LED backlight sheet 36W |
| Power Source | Corded Electric |
| Material Type | Copper, Plastic |
| Product Style | 6000K 4Pack 36w |
| Control Method | App |
| Controller Type | Remote Control |
| Item Dimensions | 19.3 x 9.6 x 9.6 inches |
| Number of Items | 4 |
| White Brightness | 14400 Lumens |
| Color Temperature | 6000 Kelvin |
| Light Source Type | LED |
| Additional Features | Dimmable |
| Included Components | Input cable, connection wires, screws, silicon bumpers. |
| Indoor Outdoor Usage | Indoor |
| Water Resistance Level | Not Water Resistant |
| Number of Light Sources | 242 |
| Manufacturer Part Number | LED backlight sheet 242 |
| Ingress Protection Code Rating | IP20 |
| Manufacturer Warranty Description | 2 years. |
