5 Pack 12V Waterproof Relay Kit, with Built-in Diode 12 AWG Harness Socket, 40/30A Heavy Duty SPDT 5 Pin Relay Switch, for Automotive Car Marine Boat
Product details
| Management number | 218152255 | Release Date | 2026/05/03 | List Price | $10.00 | Model Number | 218152255 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【40A Relay】Rated Coil Voltage: 12V DC; Max. Rated Switching Current: 40/30A; Coil Power: 1.8W; Coil Resistance: 80 Ω; Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for

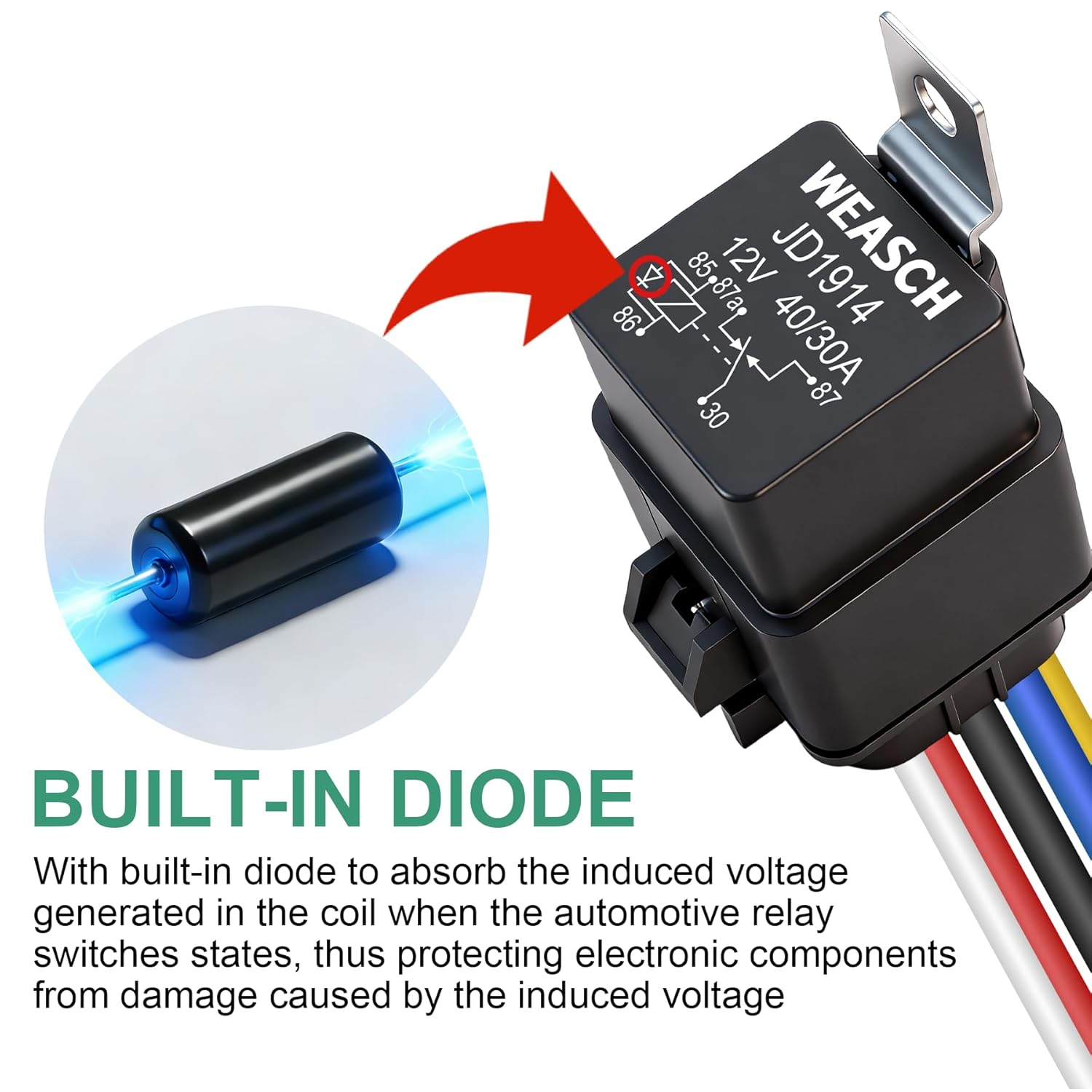

- 【Built-in Diode】This 12V relay has a built-in diode to absorb the induced voltage generated in the coil when the automotive relay switches states, thus protecting electronic components from damage caused by the induced voltage

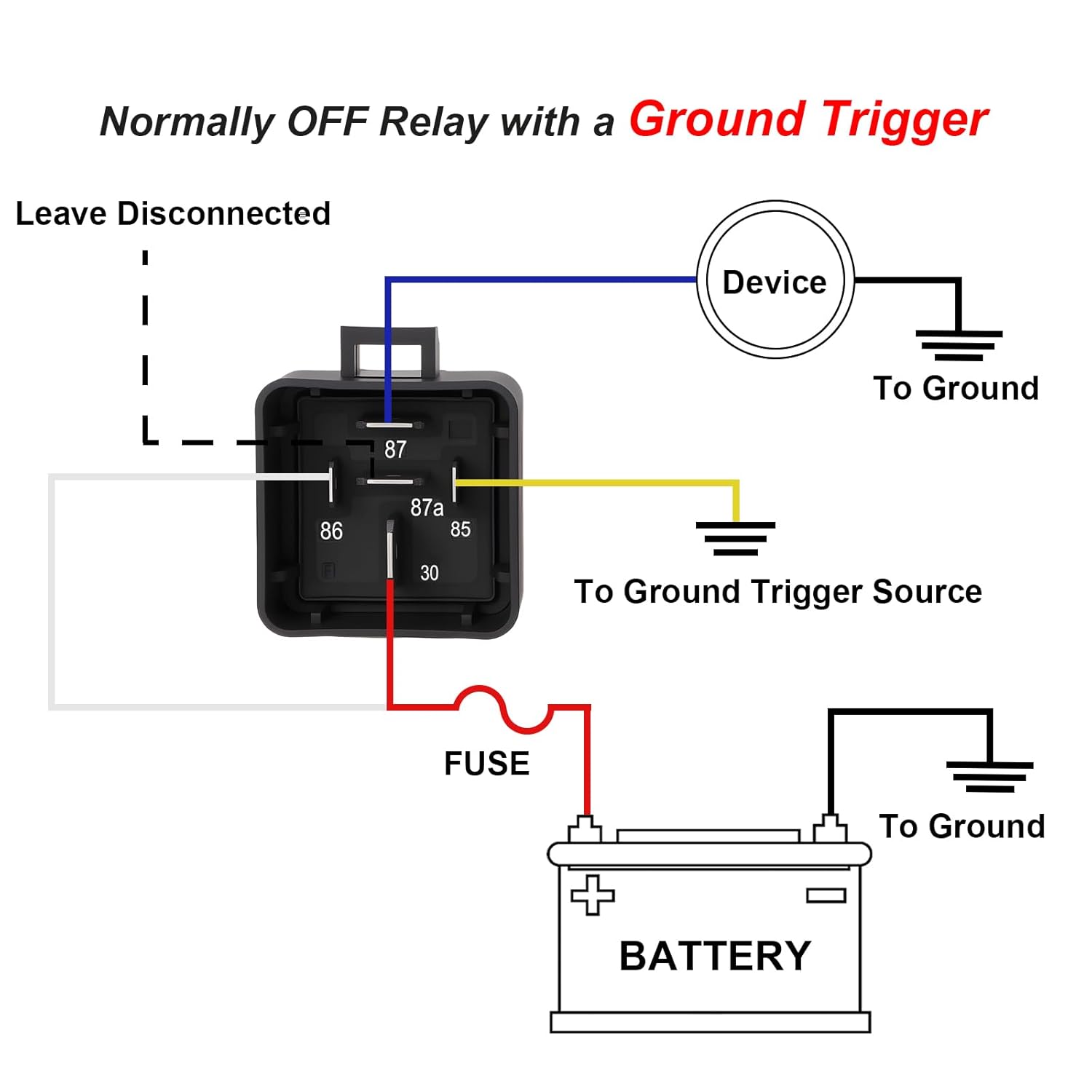

- 【12AWG Harness】 The wires which come with this relay socket are 12AWG/16AWG design, Yellow 16AWG - Ground (85), Red 12AWG - VDC (30), White 16AWG - Trigger (86) and Blue 12AWG - Output N/O (87), Black 12AWG - N/C(87a)
- 【IP65 Waterproof】The 4-pin relay is tightly sealed with a sturdy cover and sealing ring, with excellent waterproof, dustproof and moisture-proof performance, and can work normally in weather conditions
- 【Wide Application】 The 12v waterproof relay acts as a bridge between switches and devices, helps to control large rated devices by small rated switches, suitable for cars, cars, trucks, boats, etc.
- Package: 1 PCS 12V DC Waterproof Relay and Harness
| Model | 820Q-012-1C-D2 |
|---|---|
| Brand Name | Weasch |
| Part Number | 820Q-012-1C-D2 |
| Contact Type | Normally Open |
| Manufacturer | Weasch |
| Mounting Type | Plug In Mount |
| Connector Type | Plug-In |
| Current Rating | 40 Amps |
| Contact Material | Silver Alloy |
| Specification Met | CE |
| Included Components | 820Q-012-1C-D2 |
