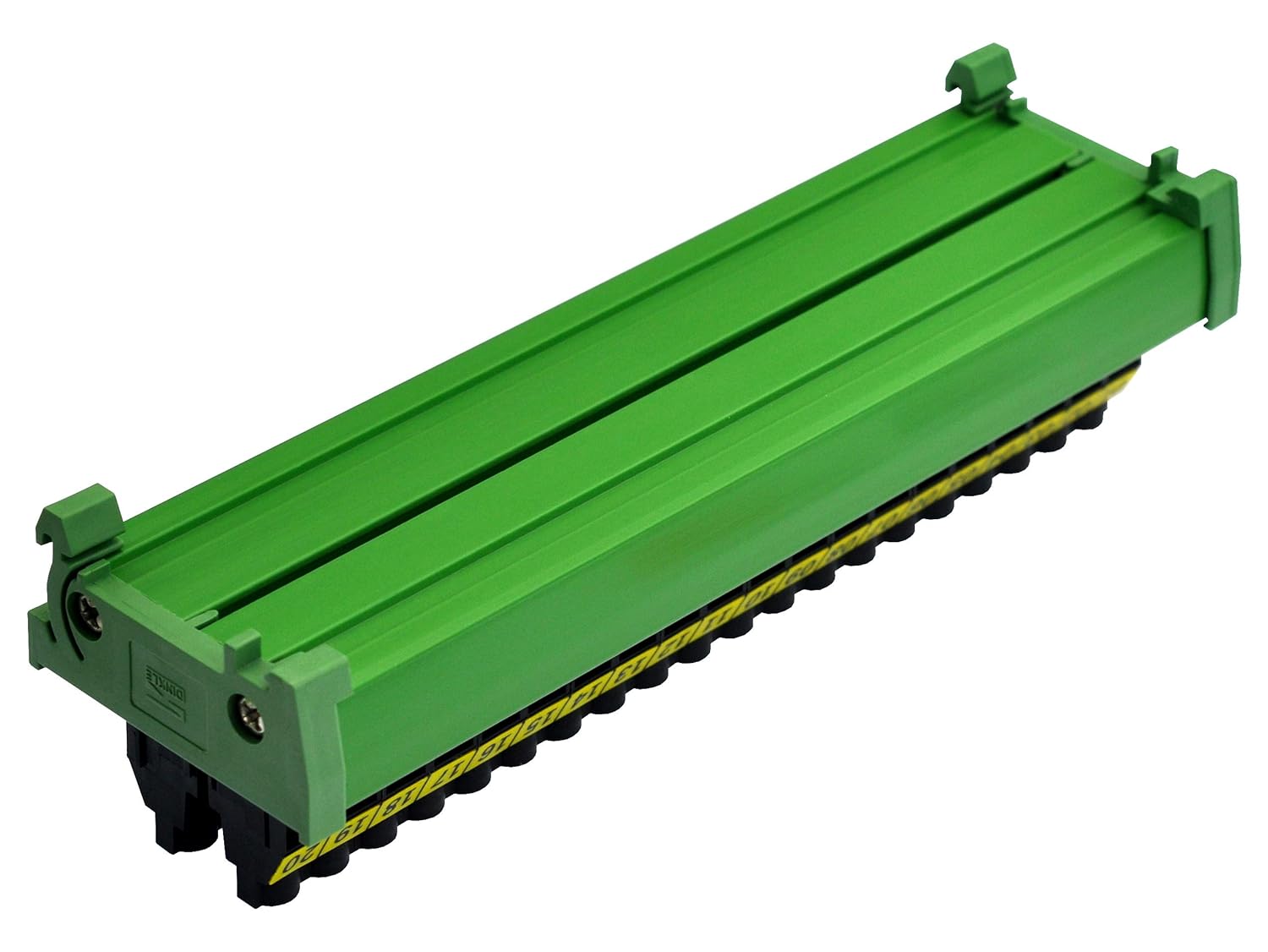

20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
$22.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by coachtoriocuritiba.com.br
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$22.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by coachtoriocuritiba.com.br
Free 30-day returns Details
Product details
| Management number | 218151882 | Release Date | 2026/05/03 | List Price | $9.20 | Model Number | 218151882 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DIN Rail Mount 20 Position 30A / 300V Screw Terminal Block Distribution Module.
- Terminal Block Pitch 7.62mm/0.3", Strip length 8mm, Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
- Wire range 26AWG ~ 10AWG / 4mm square. Rated voltage 300V, rated current 30Amp(per position).
- High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.

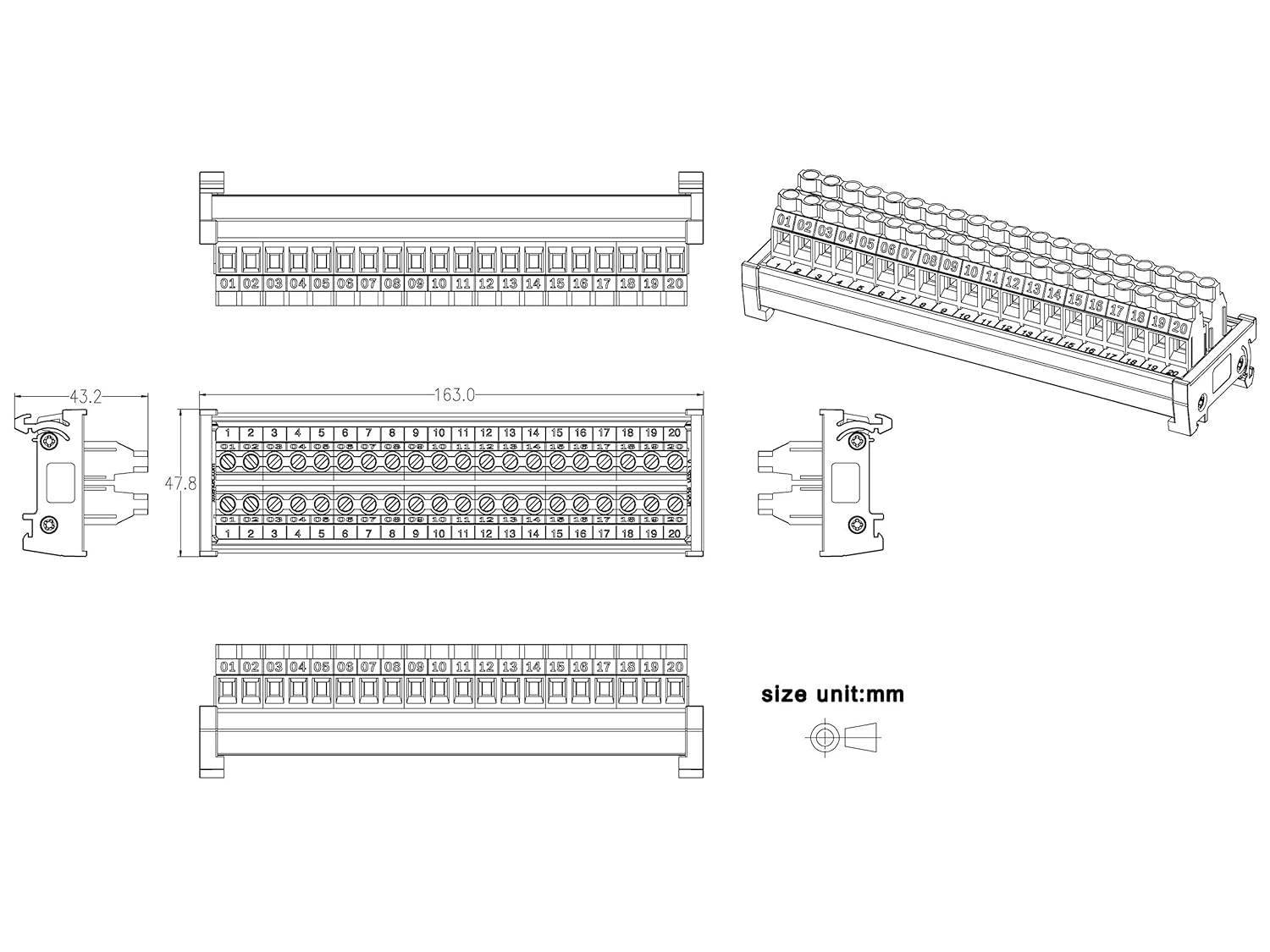

- External dimensions: L163mm x W48mm x H43mm / 6.42" x 1.89" x 1.69"
| Gauge | 26.0 |
|---|---|
| Model | HD028 |
| Pitch | 7.62 Millimeters |
| Voltage | 300 Volts |
| Brand Name | HCDC |
| Part Number | HD028 |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Brass |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 30 Amps |
| Number Of Poles | 20 |
| Centerline Length | 163 Millimeters |
| Number Of Contacts | 40 |
| Number of Positions | 20 |
| Item Dimensions W x H | 6.42"W x 1.69"H |
